2238802C91
SEAT, RH, 36 GEN4 3PT 42KVR GY 5LG TRACK ICS N/LATCH
IC Bus
BACK ORDERED
Please contact us for information on lead time
$959.95
$1,151.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-000
OEM Description
SEAT, RH, 36 GEN4 3PT 42KVR GY 5LG TRACK ICS N/LATCH

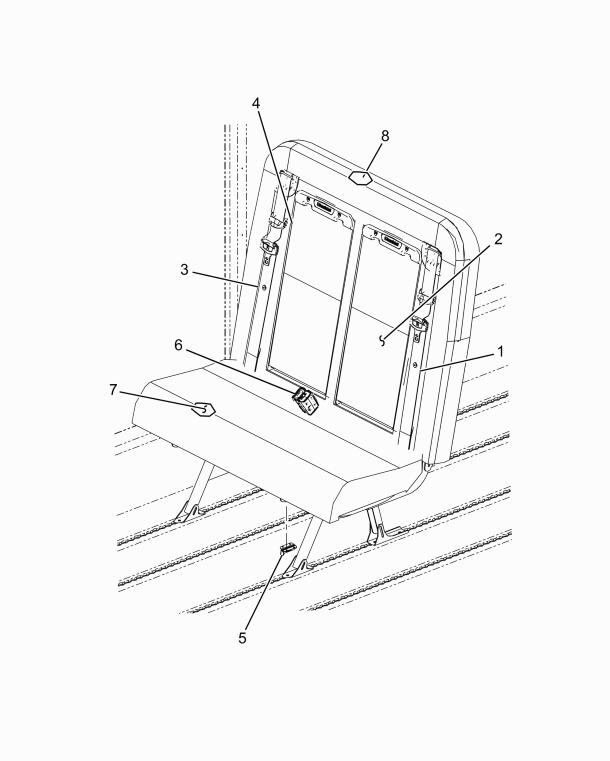

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BELT, SEAT RESTRAINT, LEFT HAND | 1 | 2510314C1 |
| POCKET ASSEMBLY ICS W/RESTRAINT GRAY | 1 | 2515095C1 |
| BELT, SEAT RESTRAINT, RIGHT HAND | 1 | 2510313C1 |
| IMMI 36 (GEN 4) X- CHANGE SEAT CUSHION KEVLAR GRAY | 1 | ZBIM620360102 |
| IMMI 36-39IN.-GENERATION 4- X- CHANGE SEAT OUTER BACK KEVLAR | 1 | ZBIM720390102BK |
| IMMI 36-39 GEN 4 X- CHANGE SEAT (5/2013) FRONT PANEL WITH CHILD SEAT J- HOOK NO LATCH 3 PT KEVLAR GRAY | 1 | ZBIM736390102FTCNL |
| LATCH, SEAT, BUS BODY, IMMI | 1 | 3952868C2 |
| BELT, BUCKLE, CABLE- DUAL, 3PT | 1 | 2510910C1 |
| FOAM, CUSHION, SEAT 36 IN | 1 | 2510912C1 |
| FOAM, SEAT BACK, OUTER, 39IN | 1 | 2510316C1 |
CROSS REFERENCES
- IN MILL F109232R
- IN MILL F109232R
