2238783C91
SEAT, LEFT HAND, 36 GEN4 3PT 42PVL GY 5LG TRUCK LATCH N/ICS
IC Bus
BACK ORDERED
Please contact us for information on lead time
$699.95
$839.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-000
OEM Description
SEAT, LEFT HAND, 36 GEN4 3PT 42PVL GY 5LG TRUCK LATCH N/ICS

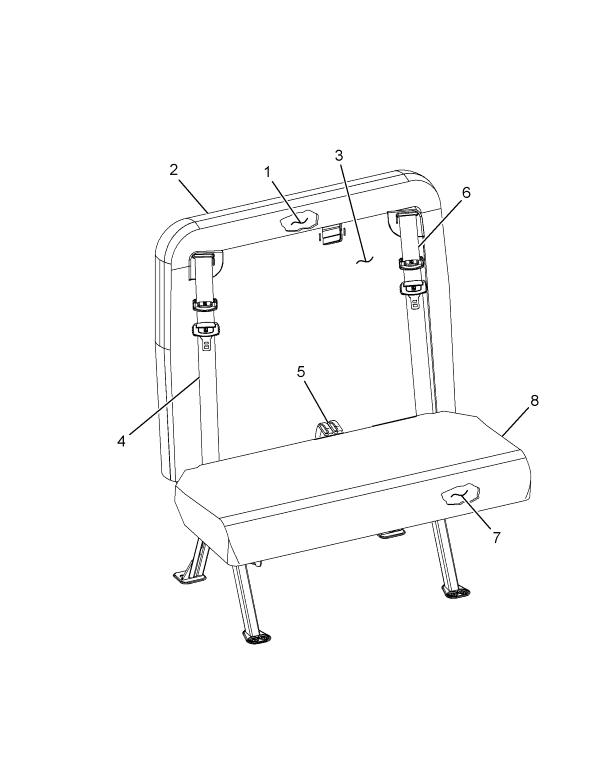

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FOAM, SEAT BACK, OUTER, 39IN | 1 | 2510316C1 |
| COVER, SEAT, OUTER GEN4, 39IN GRAY FBLK | 1 | 2510914C1 |
| COVER, INNER GEN4, 39IN GRAY, FBLK | 1 | 2510911C1 |
| BELT, SEAT RESTRAINT, LEFT HAND | 1 | 2510314C1 |
| BELT, BUCKLE, CABLE- DUAL, 3PT | 1 | 2510910C1 |
| BELT, SEAT RESTRAINT, RIGHT HAND | 1 | 2510313C1 |
| FOAM ASSEMBLY 36IN W/BOARD | 1 | 2512129C1 |
| CUSHION GEN4 ASSEMBLY 36IN FBK STANDARD GRAY | 1 | 2512128C91 |
| COVER, CUSHION GEN4, 36IN GRAY, FBLK | 1 | 2510913C1 |
CROSS REFERENCES
- IN MILL F109222L
- IN MILL F109222L
