2237831C93
SEAT, LEFT HAND, BUS BODY, ASSEMBLY 39 BTI LAP 42PVL GY 2LEG,ICS N/LATCH
IC Bus
BACK ORDERED
Please contact us for information on lead time
$779.95
$935.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT, LEFT HAND, BUS BODY, ASSEMBLY 39 BTI LAP 42PVL GY 2LEG,ICS N/LATCH

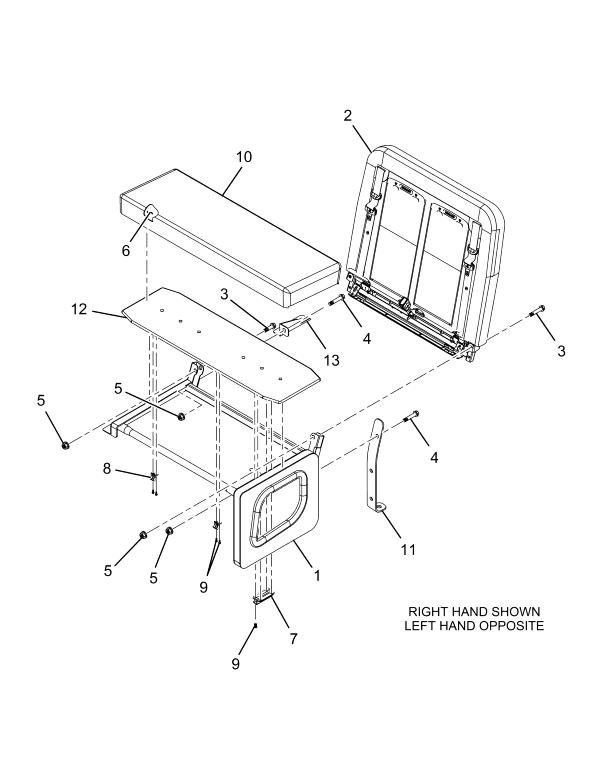

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR SEAT BASE ASSEMBLY WELDMENT L 39 IN | 1 | 3683851C6 |
| SUPPORT DUAL RISER TAIL, R | 1 | 3854734C1 |
| PLYWOOD SEAT BASE CUSHION BO | 1 | 3682035C3 |
| REINFORCEMENT, BUS BODY, WALL RISER, L | 1 | 3769975C1 |
| FR SEAT ASSEMBLY 39 BTI LAP BACKREST ICS N/LCH | 1 | 2238211C1 |
| BOLT, HEXAGON HEAD FLANGE | 2 | 3824442C1 |
| BOLT HEXAGON FLANGE 3/8-16X4 W/LOCKING PATCH | 2 | 3827492C2 |
| NUT HEXAGON FLANGE 3/8-16 GRADE 8 | 4 | 3836928C1 |
| FOAM, CUSHION SEAT 39" | 1 | 3681473C1 |
| LATCH, SEAT, BUS BODY, IMMI | 1 | 3952868C2 |
| CLIP, SEAT CUSHION ROTATION | 2 | 3827500C3 |
| SCREW SCREW, TAPPING PAN HEAD CR | 6 | 24396R1 |
