2237830C92
SEAT RIGHT HAND ASSEMBLY 39 BTI LAP 42PVL GY 2LEG ICS N/LCH
IC Bus
BACK ORDERED
Please contact us for information on lead time
$759.95
$911.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT RIGHT HAND ASSEMBLY 39 BTI LAP 42PVL GY 2LEG ICS N/LCH

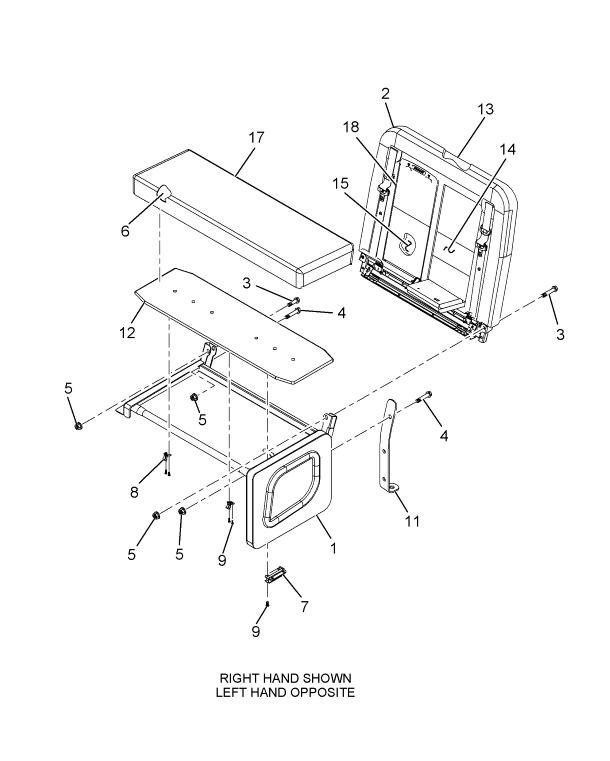

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR SEAT BASE ASSEMBLY WELDMENT L 39 INCH | 1 | 3683852C6 |
| SUPPORT DUAL RISER TAIL, L | 1 | 3854733C1 |
| PLYWOOD SEAT BASE CUSHION BO | 1 | 3682035C3 |
| FOAM, SEAT BACK, INNER, 39IN | 1 | 2515094C1 |
| PAD, ICS POCKET ASSEMBLY, GEN4 GRAY FIREBLOCK | 2 | 2515748C91 |
| FOAM, SEAT BACK, OUTER, 39IN | 1 | 2510316C1 |
| COVER, SEAT PREVAIL GRAY | 1 | ZB5620390077 |
| SEAT BACK COVER | 1 | ZBIM720390077BK |
| IMMI 39IN GENERATION 4 INNER SEAT PANEL W J- HOOK W CHILD SEAT, NO LATCH OR 3PT PREVAIL GRAY | 1 | ZBIM726390077FTCNLN3PT |
| FR SEAT ASSEMBLY 39 BTI LAP BACKREST ICS N/LCH | 1 | 2238211C1 |
| BOLT, HEXAGON HEAD FLANGE | 2 | 3824442C1 |
| BOLT HEXAGON FLANGE 3/8-16X4 W/LOCKING PATCH | 2 | 3827492C2 |
| NUT HEXAGON FLANGE 3/8-16 GRADE 8 | 4 | 3836928C1 |
| FOAM, CUSHION SEAT 39" | 1 | 3681473C1 |
| LATCH, SEAT, IMMI | 1 | 3952868C1 |
| CLIP, SEAT CUSHION ROTATION | 2 | 3827500C3 |
| BELT, LAP, BTI, RED | 1 | 2511008C1 |
| BELT, LAP, BTI, BLUE | 1 | 2511007C1 |
| BELT, LAP, BTI, TAN | 1 | 2511009C1 |
| SCREW SCREW, TAPPING PAN HEAD CR | 6 | 24396R1 |
