2237788C93
SEAT, RH, BUS BODY , 39 BTI 3-
IC Bus
BACK ORDERED
Please contact us for information on lead time
$649.95
$779.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.

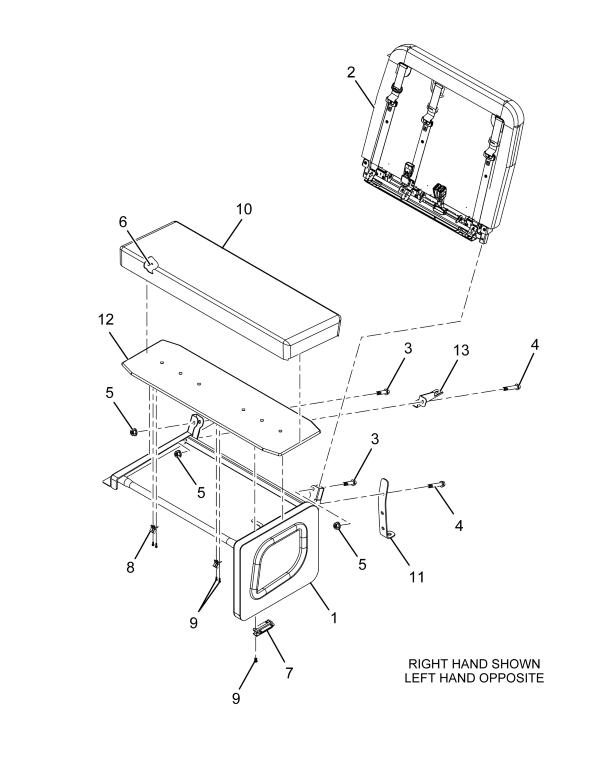

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR SEAT BASE ASSEMBLY WELDMENT L 39 INCH | 1 | 3683852C6 |
| SUPPORT DUAL RISER TAIL, L | 1 | 3854733C1 |
| PLYWOOD SEAT BASE CUSHION BO | 1 | 3682035C3 |
| REINFORCEMENT, BUS BODY, WALL RISER, R | 1 | 3769976C1 |
| FR SEAT ASSEMBLY 39 BTI 3PT BACKREST N/ICS LCH | 1 | 2238205C1 |
| BOLT, HEXAGON HEAD FLANGE | 2 | 3824442C1 |
| BOLT HEXAGON FLANGE 3/8-16X4 W/LOCKING PATCH | 2 | 3827492C2 |
| NUT HEXAGON FLANGE 3/8-16 GRADE 8 | 4 | 3836928C1 |
| FOAM, CUSHION SEAT 39" | 1 | 3681473C1 |
| LATCH, SEAT, BUS BODY, IMMI | 1 | 3952868C2 |
| CLIP, SEAT CUSHION ROTATION | 2 | 3827500C3 |
| SCREW SCREW, TAPPING PAN HEAD CR | 6 | 24396R1 |
