2237787C92
SEAT LEFT HAND ASSEMBLY 39 BTI 3PT 42VNL BL 2LEG N/ICS LATCH
IC Bus
BACK ORDERED
Please contact us for information on lead time
$569.95
$683.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT LEFT HAND ASSEMBLY 39 BTI 3PT 42VNL BL 2LEG N/ICS LATCH

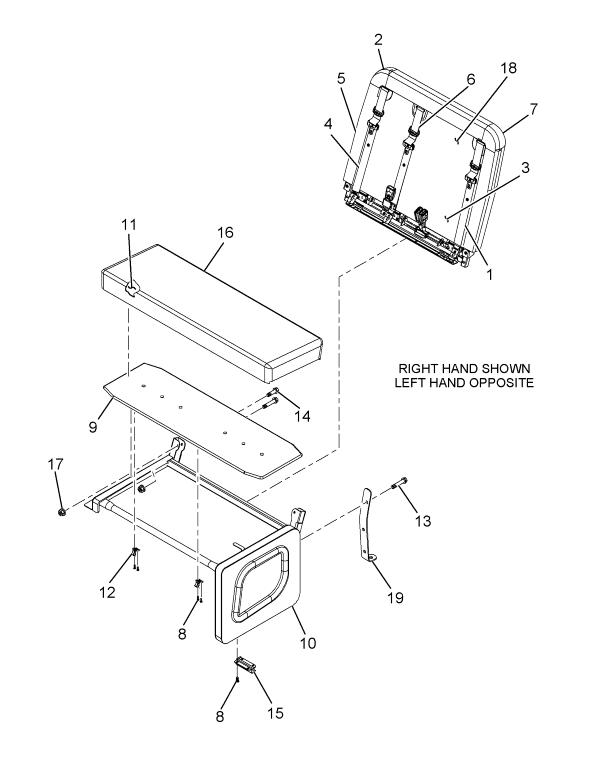

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BELT, 3PT, LEFT HAND, IC BTI BLACK | 1 | 2613161C91 |
| FR, SEAT BASE ASSEMBLY WELDMENT LH 39" | 1 | 3683851C5 |
| FOAM, CUSHION SEAT 39" | 1 | 3681473C1 |
| CLIP, SEAT CUSHION ROTATION | 1 | 3827500C3 |
| BOLT HEXAGON FLANGE 3/8-16X4 W/LOCKING PATCH | 1 | 3827492C2 |
| BOLT, HEXAGON HEAD FLANGE | 1 | 3824442C1 |
| LATCH, SEAT IMMI | 1 | 3952868C2 |
| LATCH, SEAT IMMI | 1 | 3869466C2 |
| FILM, POLYETHYLENE 36" WIDE | 1 | 3847662C1 |
| NUT HEXAGON FLANGE 3/8-16 GRADE 8 | 1 | 3836928C1 |
| UPHOLSTRY, INNER SEAT BACK, BLUE | 1 | 2613919C1 |
| SUPPORT DUAL RISER TAIL, R | 1 | 3854734C1 |
| CUSHION ASSEMBLY 39IN BLUE VINYL | 1 | 2613165C91 |
| UPHOLSTRY, CUSHION, 39, IC BLUE | 1 | ZB5620390040 |
| UPHOLSTRY, CUSHION, 39, IC BLUE | 1 | 2613164C1 |
| BELT, 3PT, RIGHT HAND, IC BTI BLACK | 1 | 2613160C91 |
| FR SEAT ASSEMBLY 39 BTI 3PT BACKREST N/ICS LCH | 1 | 2238205C1 |
| BELT, 3PT, CENTER, IC BTI BLACK | 1 | 2613162C91 |
| UPHOLSTRY, SEAT BACK, IC BLUE, BTI | 1 | 2613163C1 |
| SCREW SCREW, TAPPING PAN HEAD CR | 6 | 24396R1 |
| PLYWOOD SEAT BASE CUSHION BO | 1 | 3682035C3 |
