2237714C93
SEAT, RIGHT HAND, BUS BODY, ASSEMBLY 36 BTI 3PT 42VNL BL 2LEG N/ICS, LATCH
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,699.95
$2,039.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, RIGHT HAND, BUS BODY, ASSEMBLY 36 BTI 3PT 42VNL BL 2LEG N/ICS, LATCH

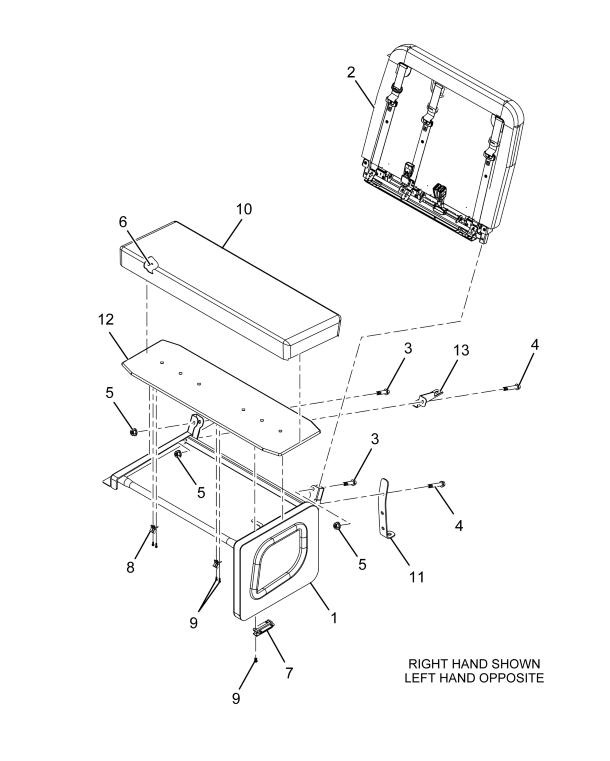

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR SEAT BASE ASSEMBLY WELDMENT L 39 INCH | 1 | 3683852C6 |
| SUPPORT DUAL RISER TAIL, L | 1 | 3854733C1 |
| PLYWOOD SEAT BASE CUSHION BO | 1 | 3682036C3 |
| REINFORCEMENT, BUS BODY, WALL RISER, R | 1 | 3769976C1 |
| FR SEAT ASSEMBLY 36 BTI 3PT BACKREST N/ICS LCH | 1 | 2238207C1 |
| BOLT, HEXAGON HEAD FLANGE | 2 | 3824442C1 |
| BOLT HEXAGON FLANGE 3/8-16X4 W/LOCKING PATCH | 2 | 3827492C2 |
| NUT HEXAGON FLANGE 3/8-16 GRADE 8 | 4 | 3836928C1 |
| LATCH, SEAT, BUS BODY, IMMI | 1 | 3952868C2 |
| CLIP, SEAT CUSHION ROTATION | 2 | 3827500C3 |
| SCREW SCREW, TAPPING PAN HEAD CR | 6 | 24396R1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
