2237684C92
SEAT RIGHT HAND ASSEMBLY 30 BTI 42VNL GY 2LEG ICS N/LATCH RST
IC Bus
BACK ORDERED
Please contact us for information on lead time
$649.95
$779.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT RIGHT HAND ASSEMBLY 30 BTI 42VNL GY 2LEG ICS N/LCH RST
Weight
140.29 lbs

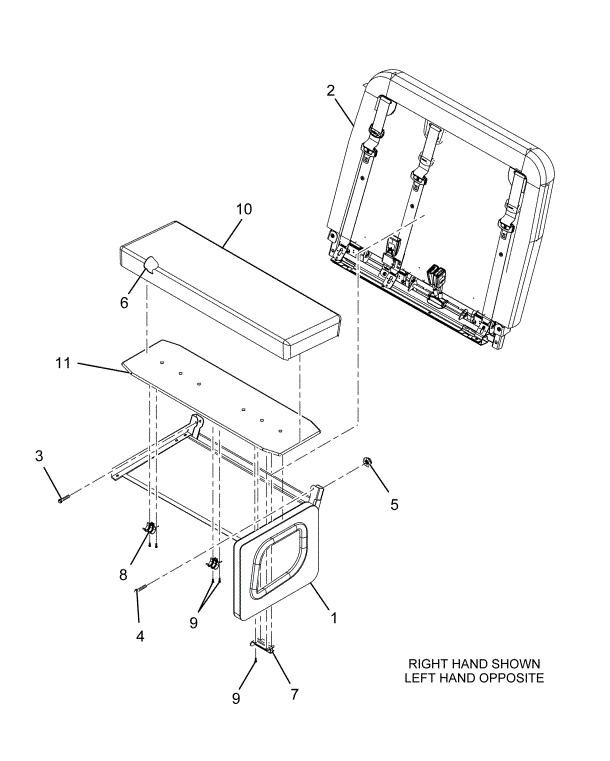

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR SEAT BASE ASSEMBLY WELDMENT R 30 INCH | 1 | 3683856C6 |
| PLYWOOD SEAT BASE CUSHION BO | 1 | 3682037C3 |
| FR SEAT ASSEMBLY 30 BTI BACKREST ICS N/LCH | 1 | 2238199C1 |
| BOLT, HEXAGON HEAD FLANGE | 2 | 3824442C1 |
| BOLT HEXAGON FLANGE 3/8-16X4 W/LOCKING PATCH | 2 | 3827492C2 |
| NUT HEXAGON FLANGE 3/8-16 GRADE 8 | 4 | 3836928C1 |
| FOAM, CUSHION SEAT 30" | 1 | 3681475C1 |
| LATCH, SEAT, IMMI | 1 | 3952868C1 |
| CLIP, SEAT CUSHION ROTATION | 2 | 3827500C3 |
| SCREW SCREW, TAPPING PAN HEAD CR | 6 | 24396R1 |
