2237570C93
SEAT, RIGHT HAND, BUS BODY, ASSEMBLY 30 BTI 3PT 42VNL BL 2LEG N/ICS, LATCH
IC Bus
BACK ORDERED
Please contact us for information on lead time
$739.95
$887.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT, RIGHT HAND, BUS BODY, ASSEMBLY 30 BTI 3PT 42VNL BL 2LEG N/ICS, LATCH

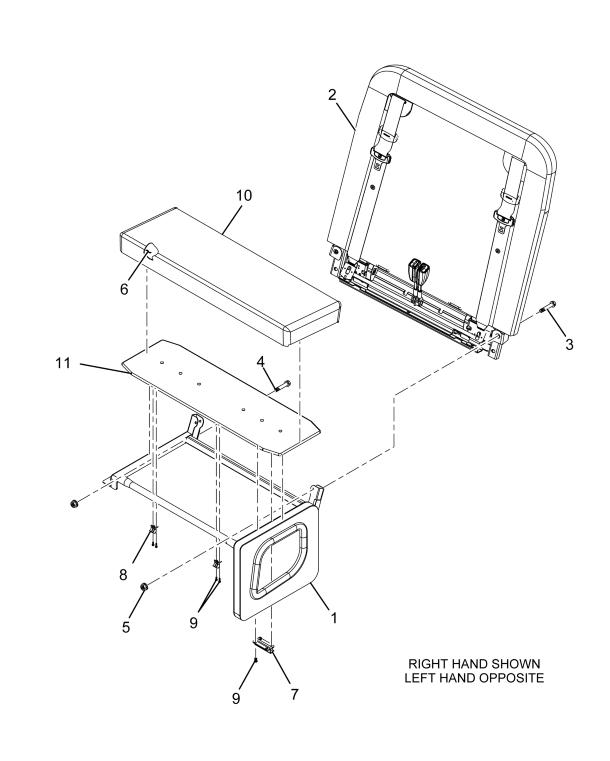

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR SEAT BASE ASSEMBLY WELDMENT R 30 INCH | 1 | 3683856C6 |
| PLYWOOD SEAT BASE CUSHION BO | 1 | 3682037C3 |
| FR SEAT ASSEMBLY 30 BTI 3PT BACKREST N/ICS LCH | 1 | 2238197C1 |
| BOLT, HEXAGON HEAD FLANGE | 2 | 3824442C1 |
| BOLT HEXAGON FLANGE 3/8-16X4 W/LOCKING PATCH | 2 | 3827492C2 |
| NUT HEXAGON FLANGE 3/8-16 GRADE 8 | 4 | 3836928C1 |
| LATCH, SEAT, BUS BODY, IMMI | 1 | 3952868C2 |
| CLIP, SEAT CUSHION ROTATION | 2 | 3827500C3 |
| SCREW SCREW, TAPPING PAN HEAD CR | 6 | 24396R1 |
