2235903C91
SEAT DRVR NATL PD 42 VNL BN W
IC Bus
BACK ORDERED
Please contact us for information on lead time
$959.95
$1,151.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT DRIVER NATL PD 42 VNL BN W/CI,OR BT W/O AR

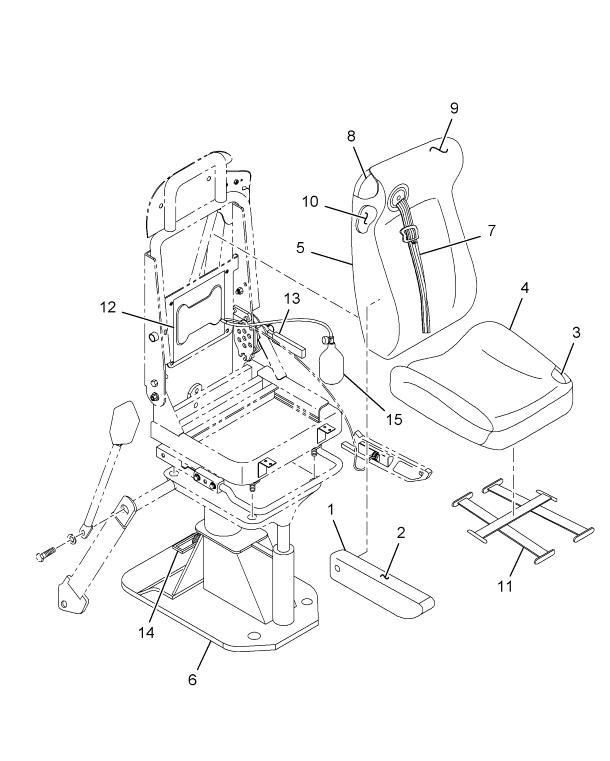

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FOAM, BACK | 1 | 2594634C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| SUPPORT, LUMBAR AIR | 1 | 2594637C1 |
| BOOT, TRIM HANDLE | 1 | 2592038C1 |
| HANDLE, PED- LOCK | 1 | 2594640C1 |
| BULB, SQUEEZE | 1 | 2594642C1 |
| ARMREST, DRIVER W/UPHOLSTERY | 1 | 2592050C91 |
| SEAT, SEATBACK UPPER COMPLETE | 1 | 2608205C91 |
| BASE, DRIVER SEAT | 1 | 2594639C1 |
| BELT, SEAT W/RETRACTOR ORANGE | 1 | 2600678C91 |
| PAD, BACK | 1 | 2594635C1 |
