2235844C91
SEAT DRIVER NAT AIR 42 PVL GN WITHOUT CI,AR W/OR BT
IC Bus
BACK ORDERED
Please contact us for information on lead time
$4,099.95
$4,919.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-000
OEM Description
SEAT DRIVER NAT AIR 42 PVL GN W/O CI,AR W/OR BT

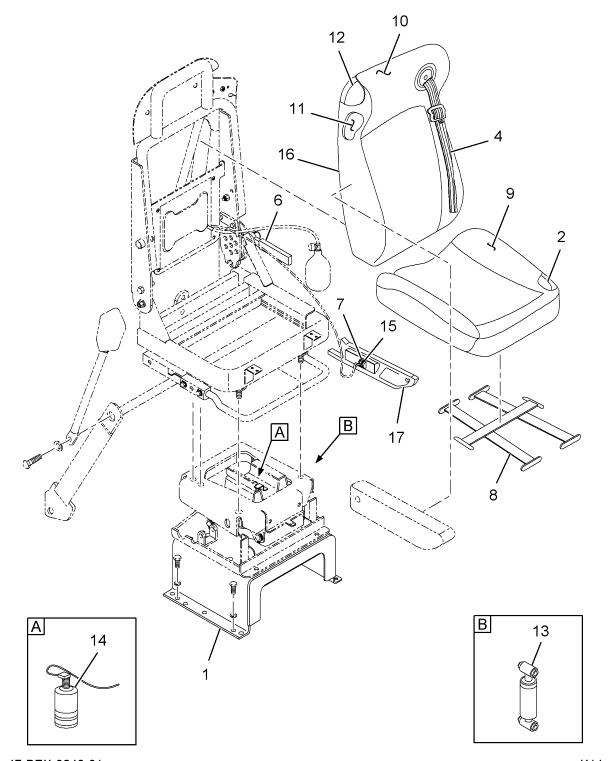

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BASE, DRIVER SEAT | 1 | 2595762C91 |
| COVER, BACK SEAT | 1 | 2597871C1 |
| FOAM, BACK | 1 | 2594634C1 |
| PAD, BACK | 1 | 2594635C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| VALVE, LUMBAR CONTROL | 1 | 2592228C1 |
| SEAT SEATBACK UPPER COMPLETE | 1 | 2610030C91 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| FOAM, CUSHION SEAT | 1 | 2594631C1 |
| BELT, SEAT W/RETRACTOR ORANGE | 1 | 2600678C91 |
| BOOT, TRIM HANDLE | 1 | 2592038C1 |
| VALVE, AIR SUSPENSION BASE | 1 | 2592227C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 1 | 2502272C1 |
| COVER, CUSHION SEAT | 1 | 2597870C1 |
CROSS REFERENCES
- NATL ST 60867.22AV071
- NATL ST 60867.22AV071
