2235666C92
SEAT DRIVER NATL DS 42 VNL GY W/CI,OR BT WITHOUT AR
IC Bus
AVAILABLE
1 is currently available
Ships within 6-8 business days
$2,049.95
$2,459.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
174-022-000
OEM Description
SEAT DRIVER NATL DS 42 VNL GY W/CI,OR BT WITHOUT AR

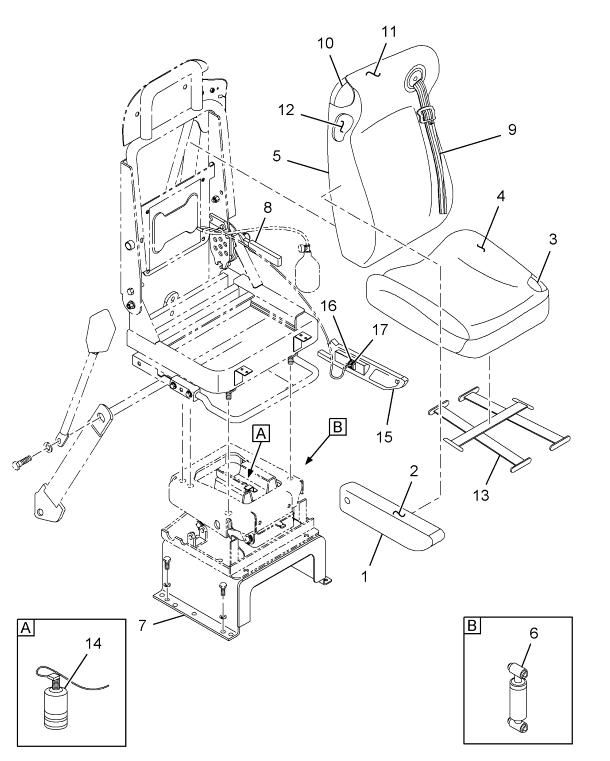

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| ARMREST, DRIVER W/UPHOLSTERY | 1 | 2592046C91 |
| PAD, BACK | 1 | 2594635C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| VALVE, AIR SUSPENSION BASE | 1 | 2592227C1 |
| VALVE, LUMBAR CONTROL | 1 | 2592228C1 |
| SEAT, SEATBACK UPPER COMPLETE | 1 | 2608190C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 2 | 507831C91 |
| BASE, DRIVER SEAT | 1 | 2596549C91 |
| BOOT, TRIM HANDLE | 1 | 2592038C1 |
| BELT, SEAT W/RETRACTOR ORANGE | 1 | 2600678C91 |
CROSS REFERENCES
- NATL ST 60868.82AV011
- NATL ST 60868.82AV011
