2235653C92
SEAT DRIVER 42OZ VNL BL W/CI,FTMN,OR BT WITHOUT AR
IC Bus
BACK ORDERED
Please contact us for information on lead time
$1,899.95
$2,279.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-000
OEM Description
SEAT DRIVER 42OZ VNL BL W/CI,FTMN,OR BT WITHOUT AR
Weight
167 lbs

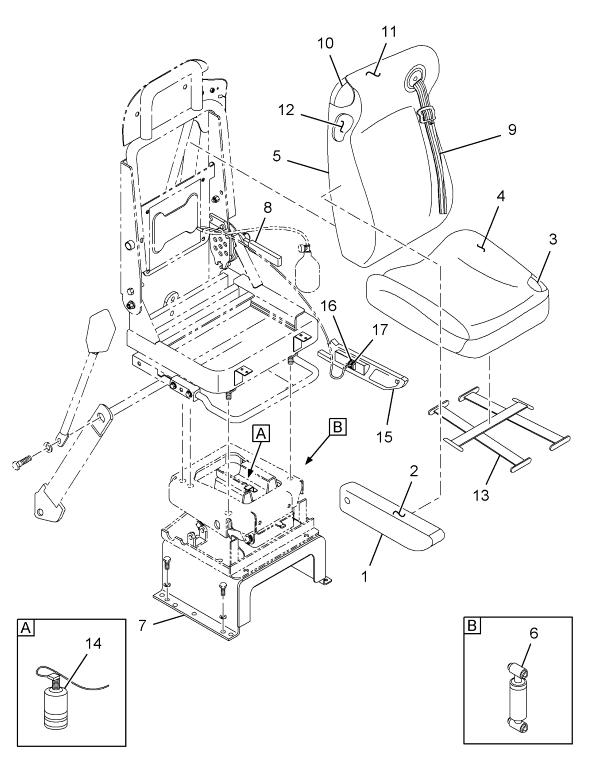

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| ARMREST, DRIVER W/UPHOLSTERY | 1 | 2592229C91 |
| PAD, BACK | 1 | 2594635C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| VALVE, AIR SUSPENSION BASE | 1 | 2592227C1 |
| VALVE, LUMBAR CONTROL | 1 | 2592228C1 |
| SEAT, SEATBACK UPPER COMPLETE | 1 | 2608542C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 2 | 507831C91 |
| BASE, DRIVER SEAT | 1 | 2596549C91 |
| BOOT, TRIM HANDLE | 1 | 2592038C1 |
| KIT, SEAT TRACK, DRIVER''S | 1 | 2592035C91 |
| BELT, SEAT W/RETRACTOR ORANGE | 1 | 2600678C91 |
CROSS REFERENCES
- NATL ST 60868.82AX031
- NATL ST 60868.82AX031
