2234770C91
SEAT DRIVER 42OZ PREV BEARING W/CI W/AR W/OR BELT
IC Bus
BACK ORDERED
Please contact us for information on lead time
$1,399.95
$1,679.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT DRIVER 42OZ PREV BEARING W/CI W/AR W/OR BELT

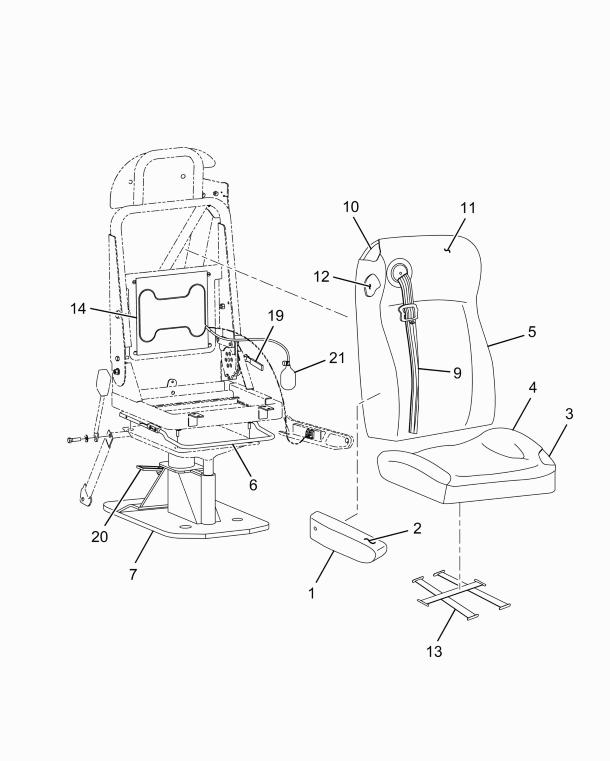

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| UPHOLSTERY, ARMREST RIGHT HAND | 1 | 2592524C1 |
| PAD, BACK | 1 | 2594635C1 |
| UPHOLSTERY, BACK SEAT DRIVER | 1 | 2595865C1 |
| FOAM, BACK | 1 | 2594634C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| SUPPORT, LUMBAR AIR | 1 | 2594637C1 |
| BOOT, TRIM HANDLE | 1 | 2592038C1 |
| ARMREST ASSEMBLY, DRIVER WITH UPHOLSTERY | 1 | 2592523C91 |
| HANDLE, PED- LOCK | 1 | 2594640C1 |
| BULB, SQUEEZE | 1 | 2594642C1 |
| FOAM, CUSHION SEAT | 1 | 2594631C1 |
| UPHOLSTERY, CUSHION SEAT DRIVER | 1 | 2595864C1 |
| SEAT, SEATBACK UPPER COMPLETE | 1 | 2606221C91 |
| BASE, DRIVER SEAT | 1 | 2594639C1 |
| BELT, SEAT W/RETRACTOR ORANGE | 1 | 2600678C91 |
