2233249C91
SEAT DRIVER NATL PREM GRAY CLOTH N/R ARMREST
IC Bus
BACK ORDERED
Please contact us for information on lead time
$1,049.95
$1,259.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
174-022-000
OEM Description
SEAT DRIVER NATL PREM GRAY CLOTH N/R ARMREST

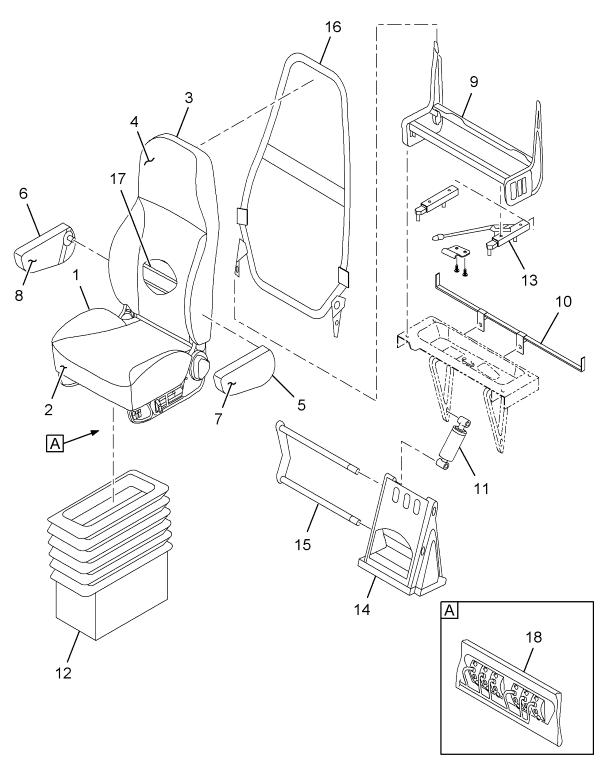

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| FR, HIGH BACK SEAT | 1 | 2588939C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| MANIFOLD, SEAT SIX BUTTON | 1 | 2505474C1 |
| ARMREST CHARCOAL MORDURA LEFT HAND | 1 | 2585675C1 |
| ARMREST CHARCOAL MORDURA RIGHT HAND | 1 | 3561055C1 |
| FR, CUSHION LOWER | 1 | 2596538C1 |
CROSS REFERENCES
- NATL ST 50872.44CA01
- NATL ST 50872.44CA01
