2231786C92
SEAT 42OZ BLUE VINYL W/CI W/FTMN LOOP
IC Bus
BACK ORDERED
Please contact us for information on lead time
$909.95
$1,091.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
174-022-000
OEM Description
SEAT 42OZ BLUE VINYL W/CI W/FTMN LOOP

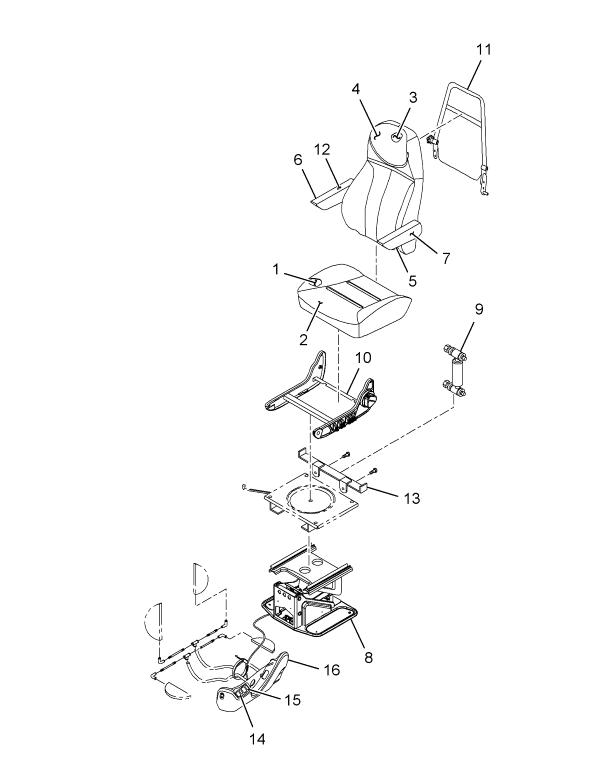

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, LOWER SEAT CUSHION | 1 | 2586187C1 |
| FR, SEAT BACK HIGH BACK | 1 | 2505877C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| ARMREST, DRIVER LEFT HAND ASSEMBLY W/UPHOLSTERY | 1 | 2608170C91 |
| ARMREST DRIVER RIGHT HAND ASSEMBLY W/UPHOLSTERY | 1 | 2608171C91 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
CROSS REFERENCES
- NATL ST 50361.80AU031
- NATL ST 50361.80AU031
