2230707C91
SEAT, RIGHT HAND 3-PT/CR 36 2LEG WAL MOUNTING 42VNL BL
IC Bus
BACK ORDERED
Please contact us for information on lead time
$1,999.95
$2,399.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, RIGHT HAND 3-PT/CR 36 2LEG WAL MOUNTING 42VNL BL

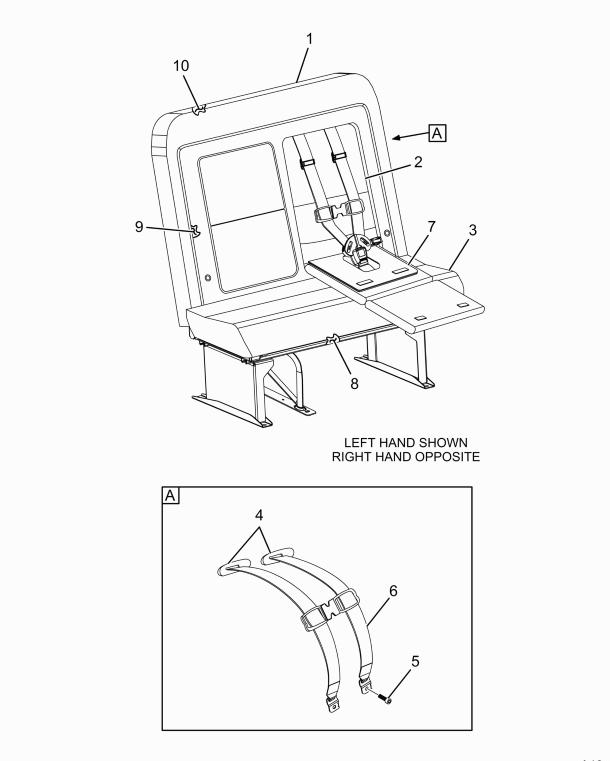

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| IMMI 36IN GENERATION 3 FLEX SEAT BACK PANEL W/J- HOOK 42OZ BLUE | 1 | ZBIM716360040BK |
| FOAM OUTER | 1 | 2609868C1 |
| IMMI 36IN/39IN GEN 3 INNER SEAT PANEL W/J-HOOK W/CHILD SEAT, NO LATCH 42OZ BLUE | 1 | ZBIM716360040FTCNL |
| IMMI 36IN GEN 3 SEAT CUSHION 42OZ BLUE SEAT | 1 | ZBIM610360040 |
| GROMMET, IMMI SEAT | 2 | 2514754C1 |
| BOLT, IMMI SEAT | 2 | 2514753C1 |
| BELT, SEAT OUTER FLEXSEAT | 2 | SGA90842 |
| PAD, ICS POCKET ASSEMBLY, BLUE | 2 | 2514752C91 |
| FOAM, SEAT | 1 | 2610068C1 |
| FOAM, INNER | 1 | 2609870C1 |
