2230234C91
SEAT FDMN FAM DAV L3#610 MISTY BAY GY W/BELTS
IC Bus
BACK ORDERED
Please contact us for information on lead time
$509.95
$611.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT FDMN FAM DAV L3#610 MISTY BAY GY W/BELTS

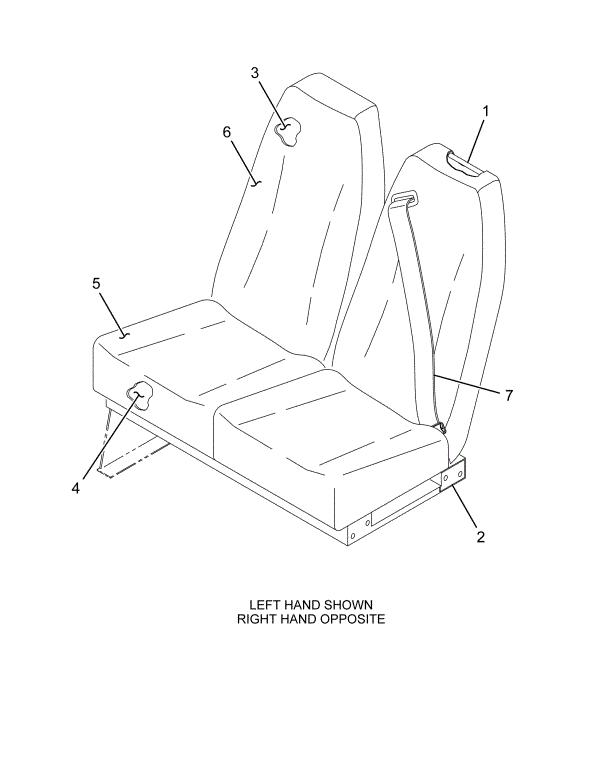

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR ASSEMBLY SINGLE FAMILY SEAT | 1 | 2586510C1 |
| FR ASSEMBLY DOUBLE SEAT LEDGE MOUNTING | 1 | 2585832C1 |
| FOAM SEAT BACK | 1 | 2606146C1 |
| FOAM SEAT CUSHION | 1 | 2606147C1 |
| UPHOLSTERY SEAT COVER BOTTOM | 1 | 2593830C91 |
| COVER, UPHOLSTERY SEAT BACK | 1 | 2593831C91 |
| BELT, SEAT W/HARDWARE | 1 | 2589349C91 |
