2229067C92
SEAT NATNL AIR 42 BLUE VNYL W/CL INS AIR LUM
IC Bus
BACK ORDERED
Please contact us for information on lead time
$649.95
$779.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
174-022-000
OEM Description
SEAT NATNL AIR 42 BLUE VNYL W/CL INS AIR LUM

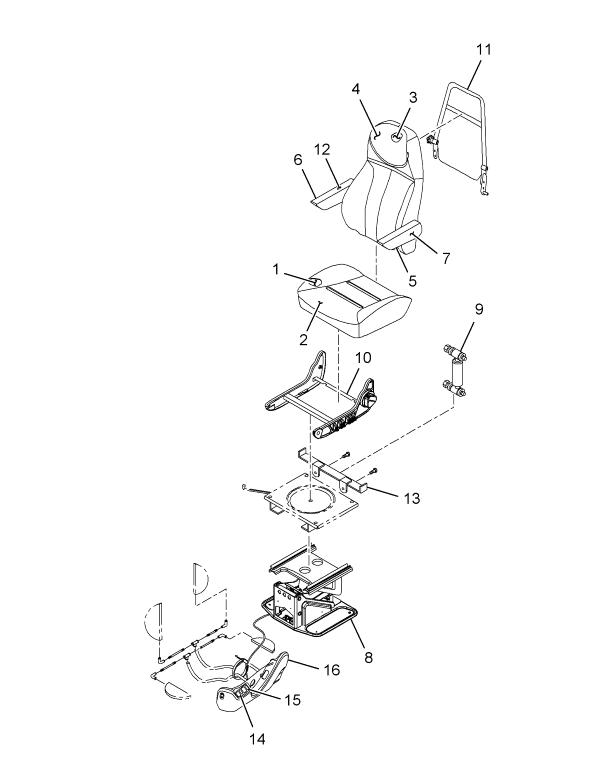

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, LOWER SEAT CUSHION | 1 | 2586187C1 |
| FR, SEAT BACK HIGH BACK | 1 | 2505877C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| ARMREST DRIVER NATIONAL BLUE LEFT HAND 42OZ | 1 | 2205399C1 |
| ARMREST DRIVER NATIONALIONAL RIGHT HAND 42OZ | 1 | 2205424C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
CROSS REFERENCES
- NATL ST 50361.82A0031
- NATL ST 50361.82A0031
