2228484C91
SEAT, 2- LEG WALL MOUNTING RIGHT
IC Bus
BACK ORDERED
Please contact us for information on lead time
$859.95
$1,031.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
174-034-000
OEM Description
SEAT, 2- LEG WALL MOUNTING RIGHT
Weight
158.33 lbs

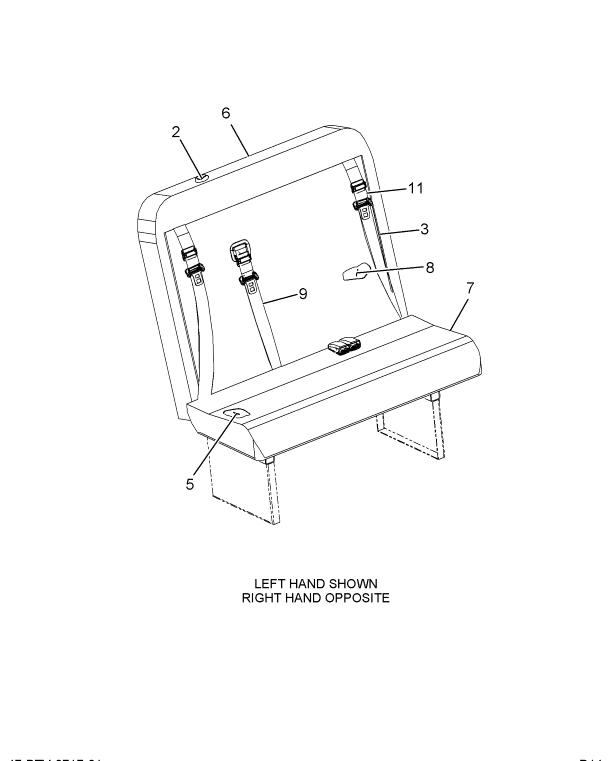

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BELT, SEAT OUTER FLEXSEAT | 1 | SGA90842 |
| FOAM OUTER | 1 | 2609868C1 |
| COVER ASSEMBLY INNER 3PT FLEX GRAY | 1 | 2510918C1 |
| FOAM CUSHION | 1 | 2607616C1 |
| UPHOLSTERY OUTER COVER | 1 | 2610065C1 |
| COVER ASSEMBLY SEAT CUSHION GRAY | 1 | 2510919C1 |
| FOAM INNER | 1 | 2610284C1 |
| WIRE, UPHOLSTERY 33.75 | 1 | 2510916C1 |
| WIRE, UPHOLSTERY 26 | 1 | 2510917C1 |
| BELT BUCKLE SINGLE | 1 | 2603736C1 |
| BELT BUCKLE DOUBLE | 1 | 2603737C1 |
| BELT, SEAT CENTER FLEXSEAT | 1 | SGA90843 |
CROSS REFERENCES
- IN MILL F103488A
- IN MILL F103488A
