2226222C91
SEAT DRVR 420Z PRVL BL W/CI W
IC Bus
BACK ORDERED
Please contact us for information on lead time
$1,049.95
$1,259.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT DRVR 42OZ PRVL BL 2SHOCK

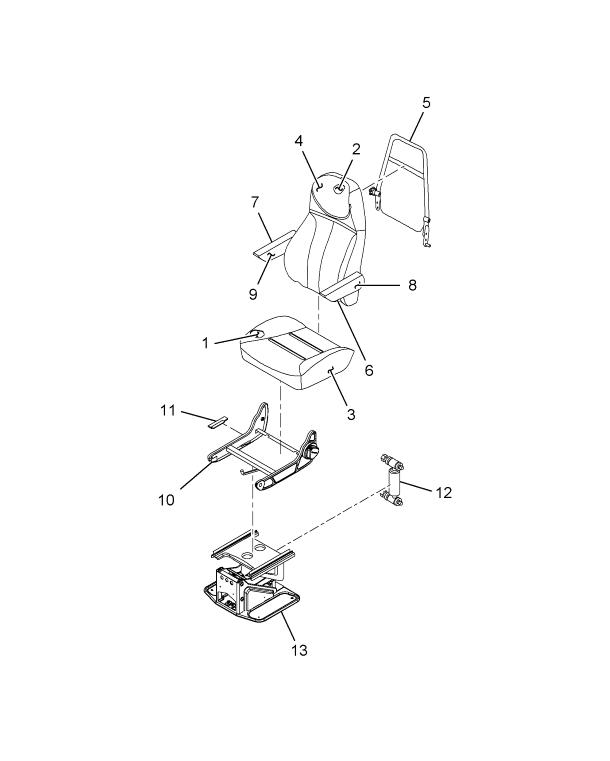

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, SEAT W/UPHOLSTERY | 1 | 2587099C91 |
| FR LOWER CUSHION | 1 | 2588531C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| BASE, DRIVERS SEAT | 1 | 2587141C91 |
| CUSHION, SEAT BACK W/UPHOLSTERY | 1 | 2587150C91 |
| UPHOLSTERY DRIVERS SEAT CUSHION | 1 | 2587103C1 |
| UPHOLSTERY DRIVERS SEAT BACK | 1 | 2587104C1 |
| FR, SEAT BACK HIGH BACK | 1 | 2505877C1 |
| ARMREST DRIVER NATIONAL BLUE LEFT HAND 42OZ | 1 | 2205409C1 |
| ARMREST DRIVER NATIONAL BLUE RIGHT HAND 42OZ | 1 | 2205434C1 |
| UPHOLSTERY LEFT HAND ARMREST | 1 | 2587105C1 |
| UPHOLSTERY RIGHT HAND ARMREST | 1 | 2587106C1 |
