2221809C91
SEAT 2 LEG WALL MOUNTING
IC Bus
BACK ORDERED
Please contact us for information on lead time
$599.95
$719.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT LH CR 30 2LEG WALL MT 4

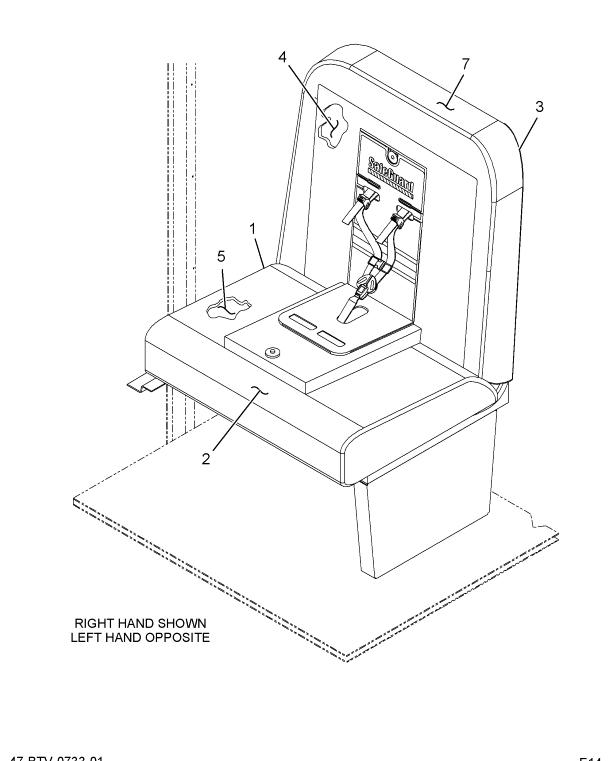

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| IMMI 30IN GENERATION 2 FLEX SEAT, J- HOOK FRONT PANEL W/CHILD SEAT, NO LATCH OR 3PT, 42OZ GRAY | 1 | ZBIM706300082FTCNLN3PT |
| FOAM, SEAT, OUTER 30IN | 1 | 2512466C91 |
| IMMI 30IN GENERATION 2 CUSHION 42OZ GRAY | 1 | ZBIM600300082 |
| IMMI 30IN GENERATION 2 FLEX SEAT BACK PANEL H/L 42OZ GRAY | 1 | ZBIM702300082BK |
| FOAM, SEAT, INNER 30IN W/ICS | 1 | 2512467C91 |
| FOAM, SEAT CUSHION | 1 | 2613690C1 |
| FOAM, SEAT PLUG, INNER | 1 | 2512468C91 |
| UPHOLSTERY, SEAT BACK, OUTER COVER | 1 | 2613688C1 |
| POCKET, ICS SEAT, 5 PNT HARNESS | 1 | 2613648C1 |
