2220872C91
SEAT DRIVER NATL SCA 42OZ PVL BRN W/CI W/AR
IC Bus
BACK ORDERED
Please contact us for information on lead time
$1,149.95
$1,379.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT DRIVER NATL SCA 42OZ PVL BRN W/CI W/AR

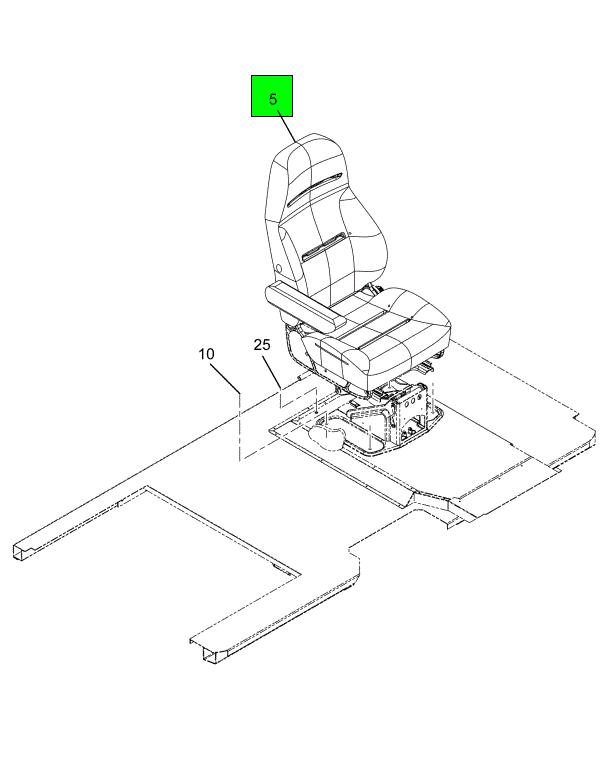

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| ARMREST ASSEMBLY, DRIVER WITH UPHOLSTERY | 1 | 2592470C91 |
| PAD, BACK | 1 | 2594635C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| BOOT, TRIM HANDLE | 1 | 2592038C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| BACK, SEAT COMPLETE UPPER | 1 | 2599029C91 |
| BASE, DRIVER SEAT | 1 | 2595762C91 |
| COMPRESSOR ASSEMBLY, | 1 | 2592528C91 |
| VALVE, AIR LEVEL SEAT ELECTRIC PADDLE | 1 | 2508945C1 |
| BELT, SEAT WITH RETRACTOR 147" | 1 | 2594994C91 |
