2220827C92
SEAT DRIVER NATL SCA 42OZ VNL GRY W/CI W/AR
IC Bus
BACK ORDERED
Please contact us for information on lead time
$989.95
$1,187.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-000
OEM Description
SEAT DRIVER NATL SCA 42OZ VNL GRY W/CI W/AR

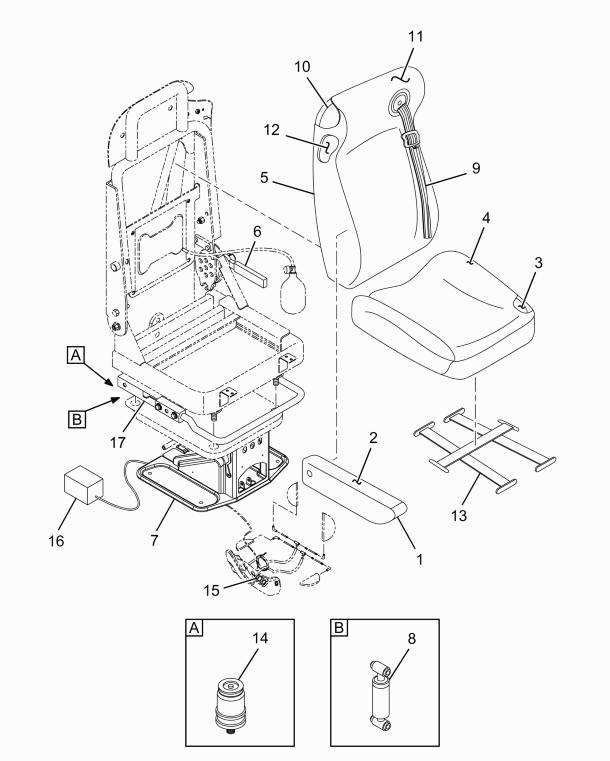

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| ARMREST, DRIVER W/UPHOLSTERY | 1 | 2592046C91 |
| PAD, BACK | 1 | 2594635C1 |
| UPHOLSTERY SEAT BACK DRIVER* | 1 | 2608189C1 |
| FOAM, BACK | 1 | 2594634C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| VALVE, AIR LEVEL SEAT ELECTRIC PADDLE | 1 | 2508945C1 |
| UPHOLSTERY RIGHT HAND ARMREST | 1 | 2587069C1 |
| FOAM, CUSHION SEAT | 1 | 2594631C1 |
| UPHOLSTERY SEAT CUSHION DRIVE | 1 | 2608188C1 |
| SEAT, SEATBACK UPPER COMPLETE | 1 | 2611690C91 |
| BOOT, TRIM HANDLE | 1 | 2592038C1 |
| BASE, DRIVER SEAT | 1 | 2595762C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| COMPRESSOR ASSEMBLY, | 1 | 2592528C91 |
| KIT, SEAT TRACK, DRIVER''S | 1 | 2592035C91 |
| BELT, SEAT WITH RETRACTOR 147" | 1 | 2594994C91 |
CROSS REFERENCES
- NATL ST 60869.85A0211
- NATL ST 60869.85A0211
