2220292C91
SEAT HIGH BACK LEVEL 5 TOWER BLUE
IC Bus
BACK ORDERED
Please contact us for information on lead time
$1,249.95
$1,499.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT HIGH BACK LEVEL 5 TOWER BLUE

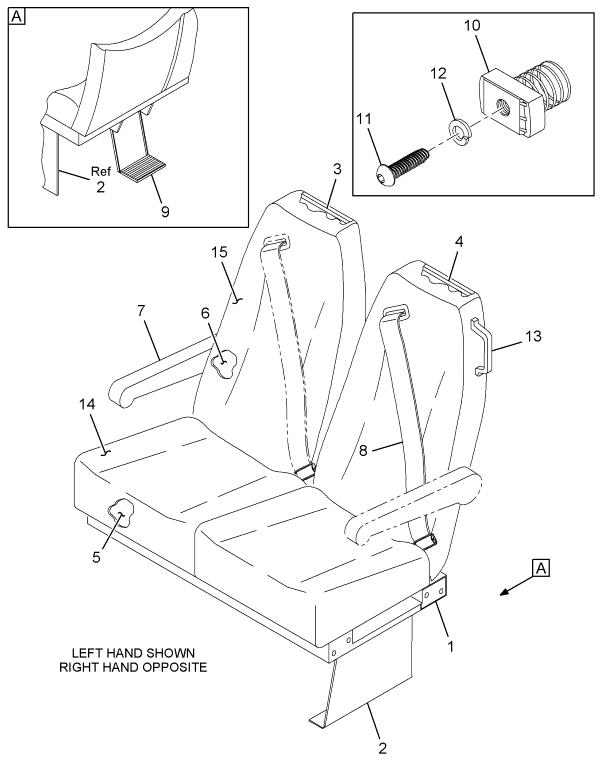

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR SEAT BASE ROAD SIDE | 1 | 2585216C1 |
| NUT, SPRING EXTENSION 7/16" UNC | 1 | 2587362C1 |
| SCREW, HEXAGON | 1 | 2597318C1 |
| WASHER, LOCK | 1 | 2597319C1 |
| HANDLE, GRAB | 1 | 2587407C1 |
| LEG, SEAT | 1 | 2585217C1 |
| FR ASSEMBLY SINGLE SEAT HIGH BACK RECLINER | 1 | 2586515C1 |
| FR SINGLE HIGH BACK RECLINING SEAT | 1 | 2587323C1 |
| PAD, HIGH BACK RECLINER SEAT CUSHION | 1 | 2586517C1 |
| PAD, HIGH BACK RECLINER SEAT BACK CUSHION | 1 | 2586516C1 |
| ARM LEFT HAND | 1 | 2588439C1 |
| BELT, SEAT ASSEMBLY | 1 | 2587355C91 |
| FOOTREST, SEAT | 1 | 2597317C1 |
