2219015C91

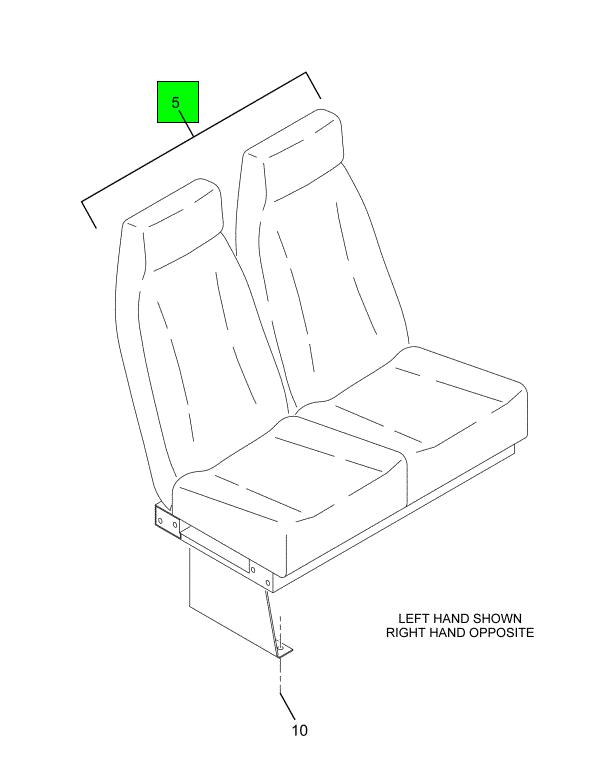

SEAT, HIGH- BACK CHARCOAL WITH AISLE ARM RIGHT HAND
IC Bus
BACK ORDERED
Please contact us for information on lead time
$349.95
$419.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, HIGH-BACK CHARCOAL WITH AISLE ARM RIGHT HAND

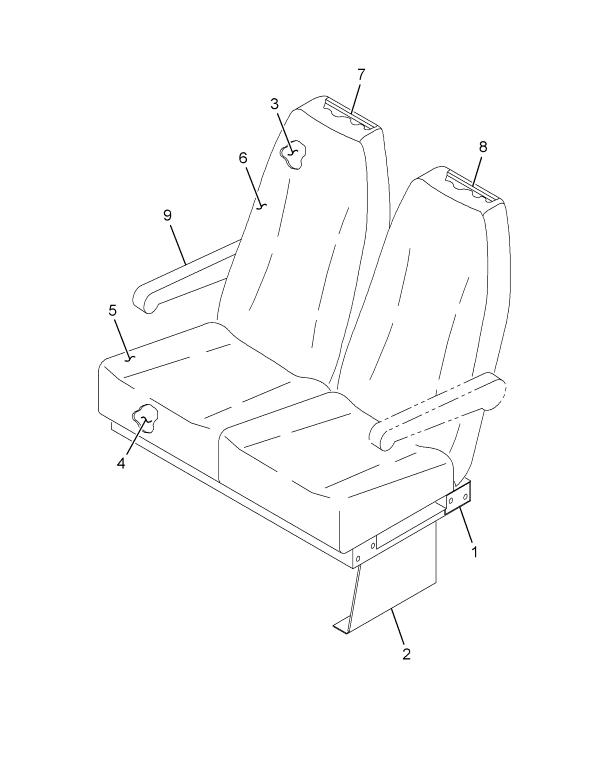

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR SEAT BASE ROAD SIDE | 1 | 2585216C1 |
| LEG, SEAT | 1 | 2585217C1 |
| PAD, HIGH BACK RECLINER SEAT BACK CUSHION | 1 | 2586516C1 |
| COVER, UPHOLSTERY SEAT | 1 | 2593402C1 |
| COVER, UPHOLSTERY BACK | 1 | 2593403C1 |
| FR ASSEMBLY HIGH BACK SINGLE SEAT RIGID | 1 | 2586518C1 |
| FR ASSEMBLY REAR LEDGE MOUNTING DOUBLE SEAT | 1 | 2585823C1 |
| ARM RIGHT HAND | 1 | 2588440C1 |
