2218574C91
SEAT 6 LEG 45 DEGREE FLIP WALL MOUNTING LEFT
IC Bus
BACK ORDERED
Please contact us for information on lead time
$1,849.95
$2,219.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT 6 LEG 45 DEGREE FLIP WALL MOUNTING LEFT

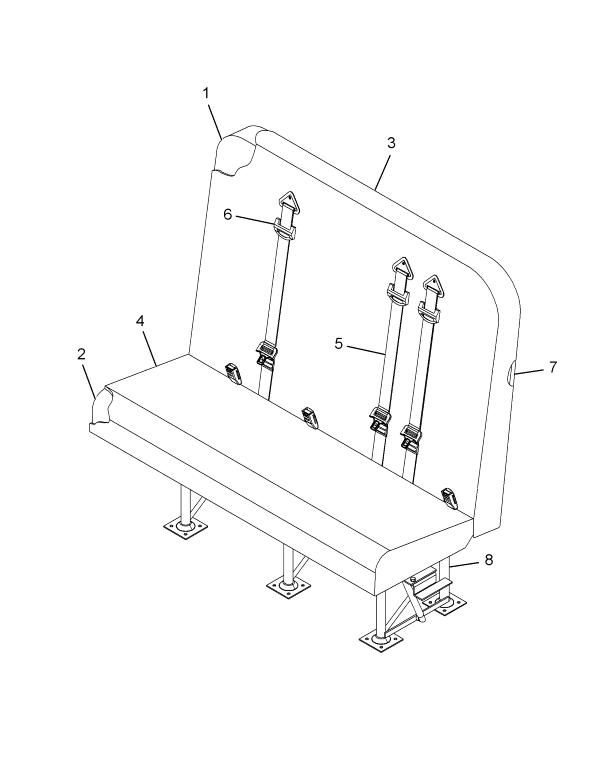

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FOAM, BACK SEAT | 1 | 2601458C1 |
| FOAM, CUSHION SEAT | 1 | 2601459C1 |
| UPHOLSTERY, SEAT BACK PASSENGER GRAY | 1 | 2591749C1 |
| UPHOLSTERY SEAT CUSHION | 1 | 2597193C1 |
| BELT SEAT W/TONGUE | 2 | 2606471C1 |
| BELT SEAT W/BUCKLE | 2 | 2606472C1 |
| FR, BACK SEAT Y | 1 | 2598791C1 |
| FR, BOTTOM SEAT Y | 1 | 2598792C1 |
| CYLINDER, GAS | 1 | 2602169C1 |
