2210415C91
SEAT NATNL STATIC 42OZ BURG V
IC Bus
BACK ORDERED
Please contact us for information on lead time
$339.95
$407.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT NATNL STATIC 42OZ BURG

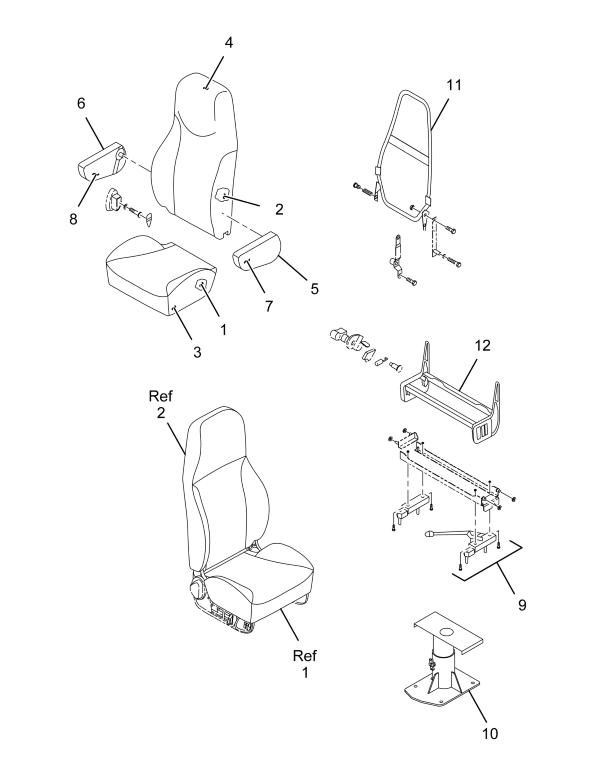

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, SEAT W/UPHOLSTERY | 1 | 2588674C91 |
| BASE, DRIVERS SEAT | 1 | 2587155C91 |
| FR, SEAT BACK HIGH BACK | 1 | 2505877C1 |
| FR LOWER SEAT CUSHION | 1 | 2587156C1 |
| CUSHION, SEAT W/UPHOLSTERY | 1 | 2588675C91 |
| UPHOLSTERY DRIVERS SEAT CUSHION | 1 | 2588654C1 |
| UPHOLSTERY HIGH BACK PASSENGER SEAT BACK | 1 | 2588655C1 |
| ARMREST DRIVER LEFT HAND W/UPHOLESTRY | 1 | 2588656C1 |
| ARMREST DRIVER NATIONALIONAL RIGHT HAND 42OZ | 1 | 2210416C1 |
| UPHOLSTERY LEFT HAND ARMREST | 1 | 2588657C1 |
| UPHOLSTERY RIGHT HAND ARMREST | 1 | 2588658C1 |
| KIT, REPAIR SEAT CUSHION FRONT | 1 | 2595024C91 |
