430741001
HARNESS, ELECTRICAL REAR CAP 16 LAMP
IC Bus
BACK ORDERED
Please contact us for information on lead time
$164.95
$197.94
FINAL SALE. No returns or exchanges.
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HARNESS, ELECTRICAL REAR CAP 16 LAMP
Weight
8.02 lbs

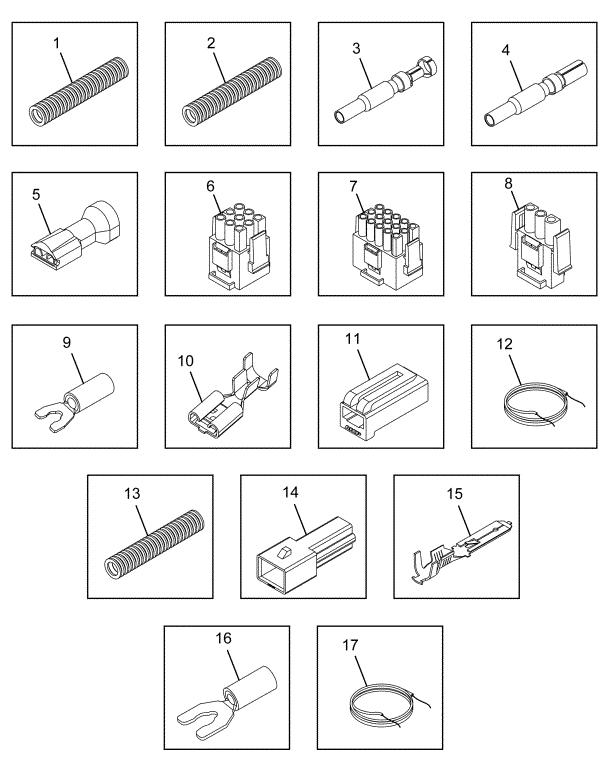

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| TERMINAL, UF FEMALE 16/12 | 27 | 203470000 |
| HOUSING, FEMALE TERMINAL SINGLE CIRCUIT | 27 | 203500000 |
| HOUSING, MALE TERMINAL SINGLE CIRCUIT | 1 | 203490000 |
| TERMINAL FAST ON TAB 250 | 1 | 2592533C1 |
| TERMINAL FAST ON TAB 250 | 1 | 203450000 |
| TERMINAL, SPADE | 1 | 409830000 |
| CONNECTOR, SOCKET | 29 | 424853002 |
| CONNECTOR, SOCKET | 10 | 424853001 |
| TERMINAL, AMP FULLY INSULATED | 4 | 425168001 |
| HOUSING, DISCONNECT CONNECTOR 9 CIRCUIT | 2 | 424855001 |
| HOUSING, DISCONNECT CONNECTOR 15 CIRCUIT | 1 | 424855002 |
| HOUSING, DISCONNECT CONNECTOR 3 CIRCUIT | 2 | 424855003 |
| TERMINAL, SPADE | 2 | 409840000 |
