429463001
HARNESS, ELECTRICAL ACCESS PANEL
IC Bus
BACK ORDERED
Please contact us for information on lead time
$89.95
$107.94
FINAL SALE. No returns or exchanges.
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HARNESS, ELECTRICAL ACCESS PANEL
Weight
0.45 lbs

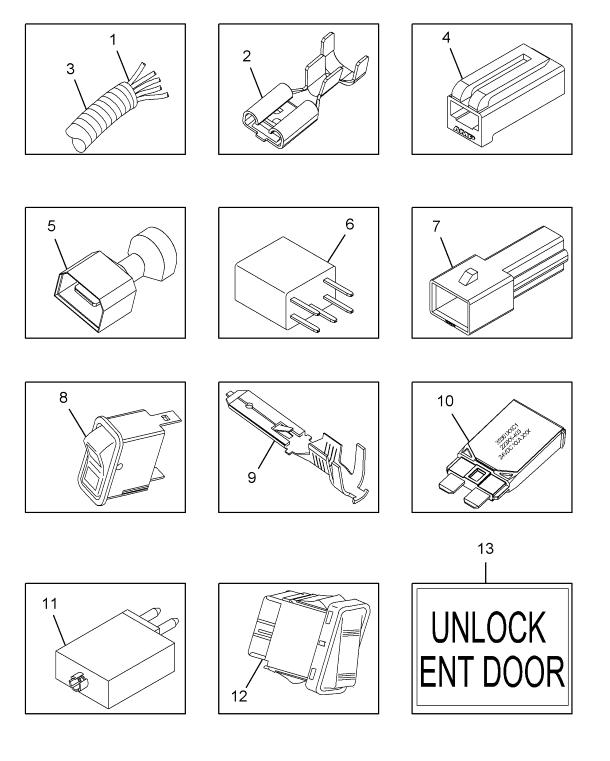

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CIRCUIT-BREAKER BROWN 8 AMP | 1 | 3529673C1 |
| CIRCUIT-BREAKER 6 AMP | 1 | 92400900 |
| SWITCH, MOMENTARY ON SPDT 20A 12 VOLT | 1 | 437258001 |
| LENS, SWITCH ID "UNLOCK ENTRANCE DOOR " | 1 | 21802047 |
| TERMINAL, UF FEMALE 16/12 | 10 | 203470000 |
| HOUSING, FEMALE TERMINAL SINGLE CIRCUIT | 10 | 203500000 |
| TERMINAL, TAB FAST ON MALE 250 | 3 | 203460000 |
| RELAY, ISO SPDT | 2 | 415296001 |
| HOUSING, MALE TERMINAL SINGLE CIRCUIT | 6 | 203490000 |
| SWITCH, ON /OFF MOMENTARY ROCKER SPST | 1 | 93108700 |
| CONNECTOR POLARIZED PLUG | 2 | 411477002 |
| TERMINAL FAST ON TAB 250 | 3 | 2592533C1 |
| TERMINAL FAST ON TAB 250 | 3 | 203450000 |
