434556002

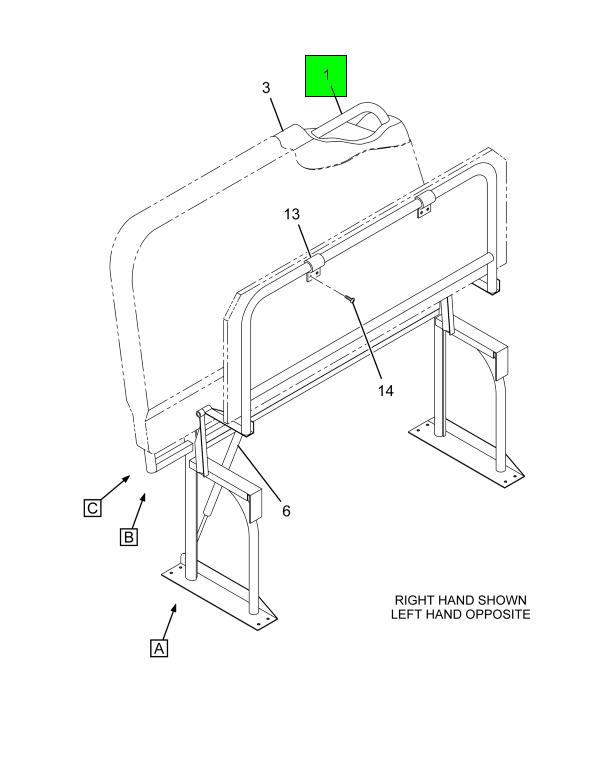

FR, AUTOMATIC FLIP SEAT
IC Bus
BACK ORDERED
Please contact us for information on lead time
$529.95
$635.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
FRAME SEAT AUTO FLIP W/A
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PLATE ANCHOR SEAT BELT SINGLE | 1 | 429674001 |
| TUBE SEAT FR OFFSET /COMBO 8.88 | 1 | 429688001 |
| LEG, SEAT ASSEMBLY AUTOMATIC FLIP W/ANC | 2 | 433173001 |
| FR, ASSEMBLY BTM AUTOFLIP W/HINGE RIGHT HAND 39" | 1 | 429975002 |
| SUPPORT RIGHT HAND SIDE | 2 | 416868001 |
| PIN, CLEVIS 5/16" X 2 1/2" | 2 | 436265001 |
| FOOT, SEAT RIGHT HAND AUTOMATIC FLIP WALL S | 1 | 434550002 |
| SUPPORT FR AUTOFLIP SEAT W/ANCHOR RIGHT HAND | 2 | 434548002 |
| GUSSET 2" X 12 GAUGE | 2 | 434553001 |
| TUBE ASSEMBLY SEAT 39" STANDARD RIGHT HAND AUTOMATIC FLIP | 1 | 2202764C1 |
| BACKPAN, SEAT 4 LEG RIGHT HAND 39" | 1 | 429613007 |
| FOOT, SEAT RIGHT HAND AUTOMATIC FLIP AISLE | 1 | 434547002 |
| SUPPORT FLIP SEAT BRACKET R | 1 | 2202391C1 |
| SUPPORT FLIP SEAT FR BRACKET L | 1 | 2202390C1 |
| TUBE CRASH-BARRIER ASSEMBLY AISLE SIDE STANDARD | 1 | 429154001 |
| HINGE, FLIP SEAT ASSEMBLY 5.00 IN RIGHT HAND | 2 | 424920003 |
| ANCHOR SEAT BELT ASSEMBLY AUTOMATIC FLIPSEAT | 1 | 433169004 |
| SUPPORT FR RIGHT HAND BARRIER AISLE SIDE | 1 | 429168001 |
| SUPPORT FR LH BARRIER AISLE SIDE | 1 | 429168002 |
| TUBE SEAT PASS ASSEMBLY RIGHT HAND AFS STANDARD 39" | 1 | 436670016 |
| REINFORCEMENT BAR SEAT OFFSET /GAS PKT | 1 | 427673039 |
