4108372C92
65 Gal Battery Cage Assembly Left-hand Side Fuel Tank
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,999.95
$3,599.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
TANK, FUEL, CAGE ASSEMBLY LHS, 65 GAL BATTERY

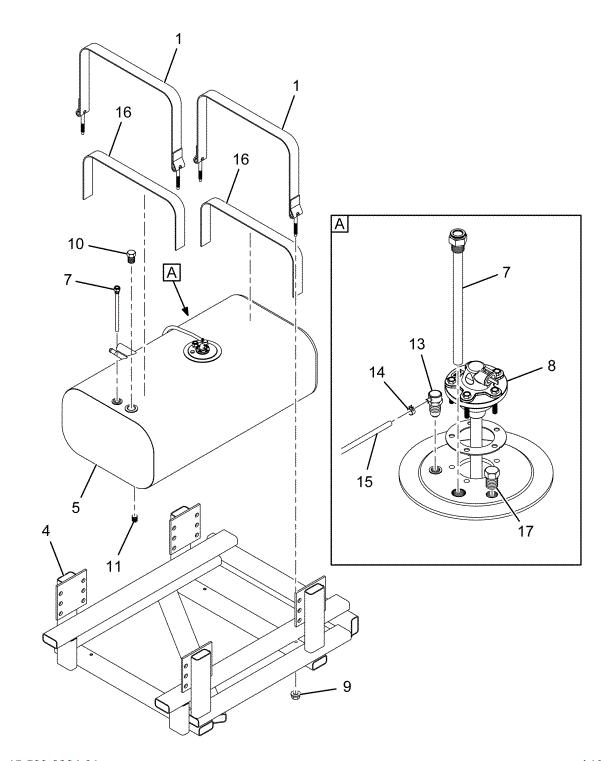

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| STRAP, FUEL TANK MOUNTING | 2 | 3584544C2 |
| PLUG, PIPE 3/4"-14 | 1 | 444638 |
| FITTING, SOCKET HEAD PLUG 1/2" NPT | 1 | 444705 |
| VENTILATOR, FUEL FULL FUNCTION | 1 | 3548222C1 |
| CLAMP, HOSE GIVE SIZE 9/16 DIAMETER HOSE | 1 | 406340C1 |
| HOSE, INTERNATIONAL HEAVY DUTY HOSE, BULK 5/16 I.D.X 9/16 O.D. | 230 | L2643544 |
| HOSE, INTERNATIONAL HEAVY DUTY HOSE, BULK 5/16 I.D.X 9/16 O.D. | 230 | 2643544R1 |
| FITTING, PLUG 3/8" NPT | 1 | 20990R1 |
| GUARD, FUEL TANK | 1 | 3547389C2 |
| TANK, FUEL, RIGHT HAND SIDE 65 GALLON | 1 | 4108255C92 |
| OUTLET, FUEL TANK FUEL TANK OUTLET 15" | 2 | 3566910C2 |
| GAUGE, FUEL SENDER, 15 INCH, 33- 240 OHM | 1 | 6132739C91 |
| NUT, HEXAGON FLANGE | 4 | 30755R1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
