4098972C95
TANK, FUEL, 25 GALLON, PLASTIC, CAB TO AXLE MOUNTED
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,899.95
$2,279.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
044-003-000
OEM Description
TANK, FUEL, 25 GALLON, PLASTIC, CAB TO AXLE MOUNTED
Weight
35 lbs

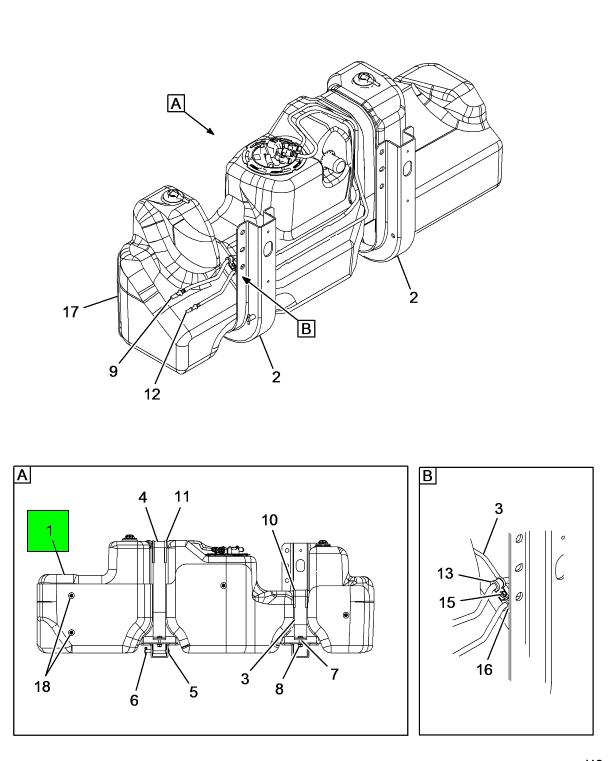

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| TANK,FUEL , HDPE MIDSHIP SHELL | 1 | 4084876C5 |
| 5/16 INCH CAP | 1 | 7502916C1 |
| 130mm FUEL TANK LOCK RING RETAINER | 1 | 7502846C1 |
| FUEL PUMP O-RING | 1 | 7502847C1 |
| PUMP,ASM FUEL ELECT, CA TANK FUEL DELIVERY MODULE | 1 | 7502689C92 |
CROSS REFERENCES
- GMVISTA 19406190
- GMVISTA 19406190
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
