3903687C95
HOOD ASSEMBLY, TRANSTAR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,999.95
$3,599.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HOOD ASSEMBLY, TRANSTAR
Weight
300.63 lbs

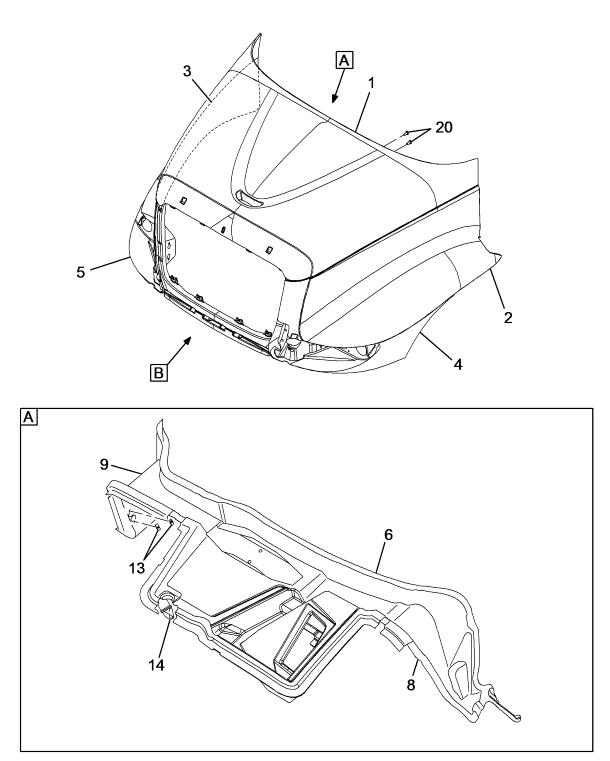

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL HOOD TOP | 1 | 3554855C1 |
| HINGE, HOOD CENTER ROD TYPE | 1 | 3588613C1 |
| BOLT, FLANGE HEAD M10 X 3 | 6 | 3549305C1 |
| NUT, HEXAGON M10 | 6 | 3535556C1 |
| NUT, SPECIAL LONG "U" NUT M8 X 1.25 | 10 | 3541323C1 |
| VALVE, HOOD DRAIN HOOD DRAIN, 45 DEGREE. VACUATOR VALVE | 1 | 3570616C1 |
| NUT, MULTIPLE THREAD M6 | 2 | 3569643C1 |
| BAR, HOOD PIVOT TORSION ASSIST LEFT HAND | 1 | 3555125C2 |
| BAR, HOOD PIVOT TORSION ASSIST RIGHT HAND | 1 | 3555126C2 |
| BRACKET, MOUNTING HOOD ASSIST | 2 | 3555130C1 |
| INSULATOR, HOOD MOUNTING ROUND ISOLATOR | 2 | 3839702C1 |
| PANEL, LEFT SIDE HOOD FENDER | 1 | 3554856C2 |
| RIVET, BLIND | 2 | 493414C1 |
| PANEL, RIGHT SIDE HOOD | 1 | 3554857C2 |
| REINFORCEMENT FENDER FRONT LH | 1 | 3887042C3 |
| REINFORCEMENT FENDER FRONT RIGHT HAND | 1 | 3887043C3 |
| REINFORCEMENT HOOD CENTER ASSEMBLY | 1 | 3554860C2 |
| REINFORCEMENT HOOD CENTER ASSEMBLY | 1 | 3554860C3 |
| REINFORCEMENT HOOD FRONT | 1 | 3581360C2 |
| REINFORCEMENT HOOD FRONT | 1 | 3581360C3 |
| REINFORCEMENT HOOD REAR ASSEMBLY L | 1 | 3588606C3 |
| REINFORCEMENT HOOD REAR ASSEMBLY R | 1 | 3588608C3 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
