3892074C93
HOOD ASSEMBLY AS PURCHASED
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,099.95
$1,319.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HOOD ASSEMBLY AS PURCHASED

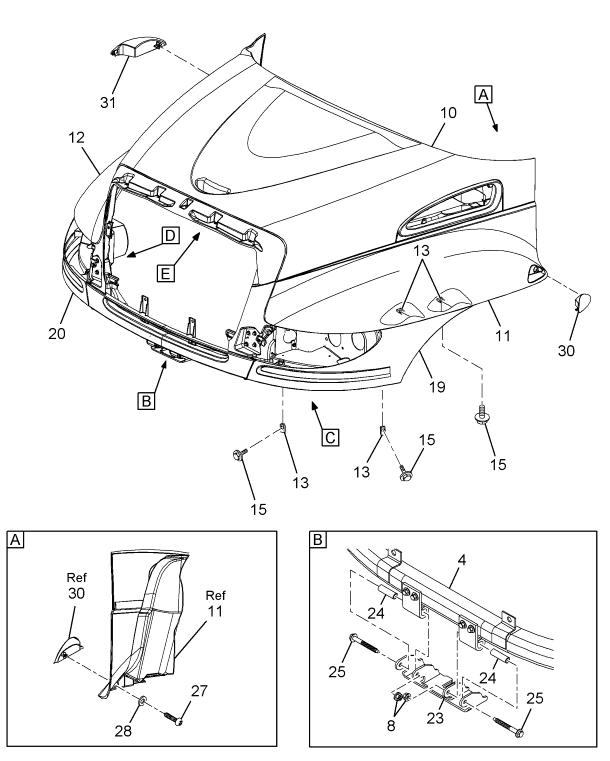

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| REINFORCEMENT ASSEMBLY, HOOD REAR LEFT | 1 | 3823594C4 |
| REINFORCEMENT ASSEMBLY, HOOD REAR LEFT | 1 | 3823594C2 |
| PANEL HOOD SKIN TOP PANEL | 1 | 3545396C2 |
| PANEL, FENDER HOOD LEFT HAND | 1 | 3582926C2 |
| PANEL, SKIN HOOD RIGHT HAND | 1 | 3545398C6 |
| NUT, MULTIPLE THREAD M6 | 14 | 3569643C1 |
| NUT, SPECIAL LONG "U" NUT M8 X 1.25 | 3 | 3541323C1 |
| BOLT, SEMS ALL M6 X 1.0-25 MM | 12 | 3566932C1 |
| BRACKET, MOUNTING HOOD ASSIST LEFT HAND | 1 | 3551604C2 |
| BRACKET, MOUNTING HOOD ASSIST RIGHT | 1 | 3551605C2 |
| BOLT, FLANGE HEAD M8 X 20 | 4 | 3547776C1 |
| PANEL, VALANCE FRONT FENDER LEFT HAND | 1 | 3558078C5 |
| REINFORCEMENT ASSEMBLY, HOOD REAR RIGHT | 1 | 3823590C2 |
| PANEL, VALANCE FRONT FENDER RIGHT HAND | 1 | 3558079C5 |
| PANEL FRONT END | 1 | 3551673C3 |
| PANEL FRONT END | 1 | 3551673C5 |
| BOLT FLANGE HEAD ZACLR M10 X 20 MM | 8 | 3566946C1 |
| BRACKET, MOUNTING HOOD HINGE ASSEMBLY | 1 | 3549792C2 |
| SPACER, HOOD HINGE PIN | 2 | 3566561C1 |
| BOLT, FLANGE HEAD M10 X 80 | 2 | 40231R1 |
| FASTENER, PINETREE BLACK 6.45 MM X 20 MM | 2 | 3564251C1 |
| BOLT, FLANGE HEAD TORX K50 X 2.24 X 16MM | 2 | 3565527C1 |
| WASHER, LOCK | 2 | 22237R1 |
| RIVET, BLIND 4.8 MM X 11.5 MM | 2 | 769578C1 |
| RIVET, SPECIAL BLIND | 2 | 552870C1 |
| COVER, MARKER LIGHT FRONT FENDER | 1 | 3577044C2 |
| COVER, MARKER LIGHT FRONT FENDER | 1 | 3577045C2 |
| REINFORCEMENT HOOD, LH | 1 | 3891888C1 |
| REINFORCEMENT HOOD, RIGHT HAND | 1 | 3891889C1 |
| SUPPORT, HOOD CROSSBAR | 1 | 3565821C1 |
| SUPPORT, HOOD CROSSBAR | 1 | 3565821C2 |
| SUPPORT ASSEMBLY, BAR CENTER LEFT HAND | 1 | 3579499C3 |
| SUPPORT ASSEMBLY, CENTER BAR TO FRONT REINFORCEMENT RIGHT HAND | 1 | 3537160C2 |
| BOLT, FLANGE HEAD M10 X 4 | 8 | 3554703C1 |
| NUT, HEXAGON M10 | 10 | 3535556C1 |
| REINFORCEMENT HOOD ASSEMBLY FRONT | 1 | 3548630C6 |
| REINFORCEMENT HOOD ASSEMBLY FRONT | 1 | 3548630C7 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
