3877134C92

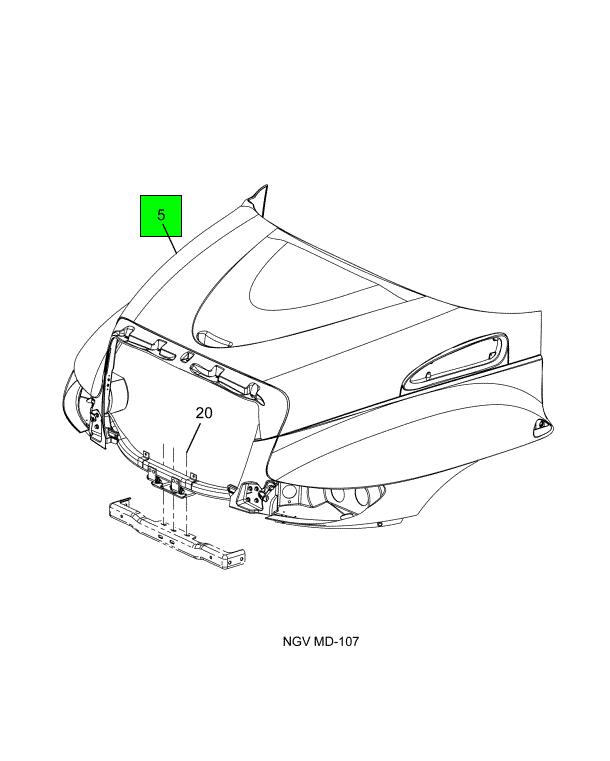

HOOD ASSEMBLY BONDED
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,649.95
$1,979.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HOOD ASSEMBLY BONDED

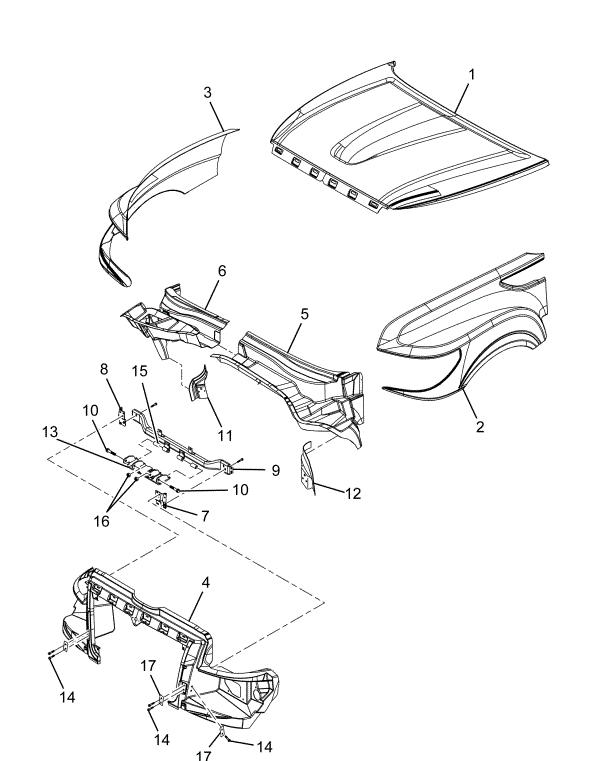

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL HOOD TOP | 1 | 3877210C1 |
| BOLT, FLANGE HEAD M10 X 80 | 2 | 40231R1 |
| LEFT HAND REINFORCEMENT LATCH | 1 | 3877208C1 |
| RIGHT HAND REINFORCEMENT LATCH | 1 | 3877209C1 |
| BRACKET, MOUNTING HOOD HINGE ASSEMBLY | 1 | 3549792C2 |
| BOLT, FLANGE HEAD M10 X 2 | 16 | 3558068C1 |
| SPACER, HOOD HINGE PIN | 2 | 3566561C1 |
| NUT, HEXAGON M10 | 2 | 3535556C1 |
| GRILLE OPENING REINFORCEMENT SUPPORT BRACKET | 4 | 6111148C1 |
| PANEL FENDER L | 1 | 3877213C1 |
| PANEL FENDER R | 1 | 3877214C1 |
| REINFORCEMENT, GRILLE OPENING | 1 | 3877216C2 |
| PANEL REAR, HOOD, ASSEMBLY, L | 1 | 3877204C1 |
| REINFORCEMENT REAR, HOOD, ASSEMBLY, R | 1 | 3877164C1 |
| SUPPORT HINGE BAR, ASSEMBLY, L | 1 | 3876871C1 |
| SUPPORT HINGE BAR, ASSEMBLY, R | 1 | 3876872C1 |
| BAR HOOD HINGE, ASSEMBLY | 1 | 3874963C1 |
