3814311C92
BUMPER LH FOR CHROME PTD GRAY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$789.95
$947.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
BUMPER ASSEMBLY FRONT CHROME PREPPED GRAY LEFT
Weight
29.0004 lbs

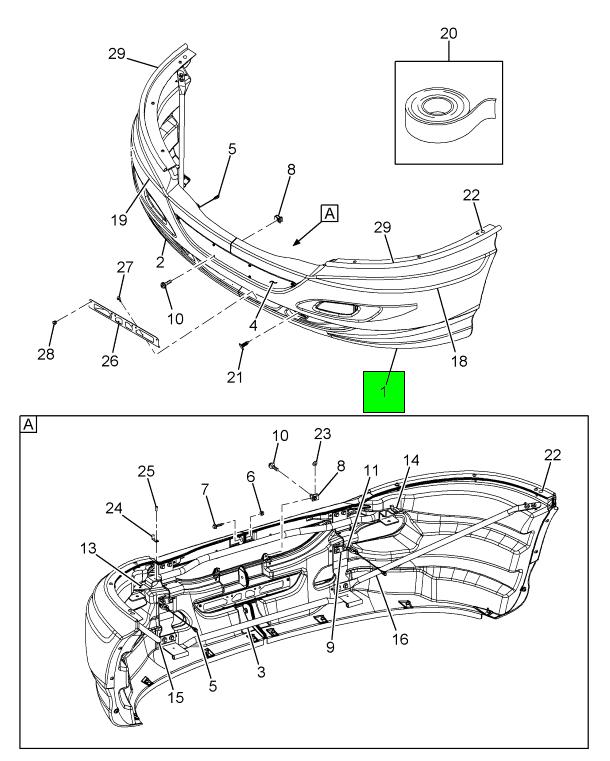

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| REINFORCEMENT, BUMPER FRONT CHROME | 1 | 3814306C92 |
| BUMPER, FRONT OUTER PANEL STANDARD PAINTED LEFT HAND | 1 | 3804901C3 |
| BOLT, SEMS ALL TORX M8 X 1.25 X 30 MM | 10 | 3588153C1 |
| NUT, SPECIAL LONG "U" NUT M8 X 1.25 | 9 | 3541323C1 |
| NUT, HEXAGON M8 X 1.25 | 1 | 3535162C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
