4084573C3

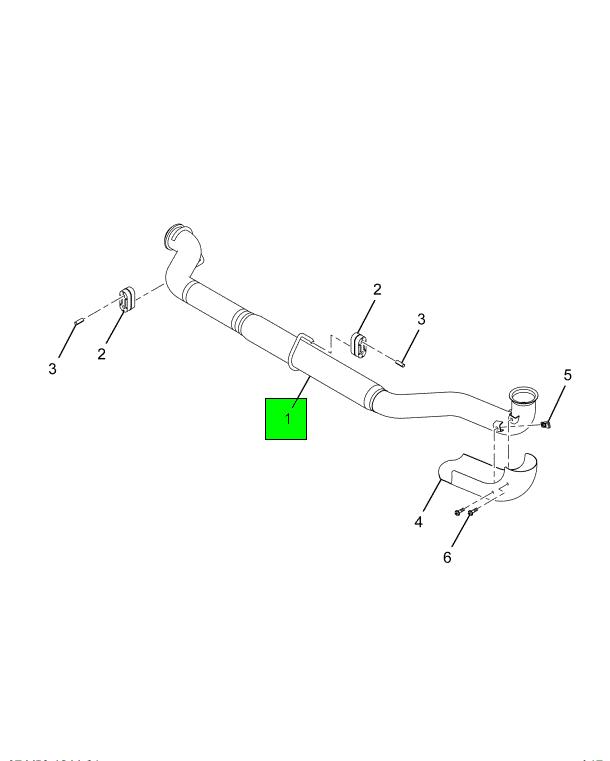

PIPE, TAIL HUMP SECTION, WELDED ASSEMBLY, 2017 HX CROSSOVER PIPE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,649.95
$1,979.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
PIPE, TAIL HUMP SECTION, WELDED ASSEMBLY, 2017 HX CROSSOVER PIPE
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PIPE, INTERMEDIATE, TAIL, LEFT HAND | 1 | 4068605C1 |
| PIPE, TAIL HUMP SECTION, INLET | 1 | 4084572C1 |
| TUBE FLEXIBLE | 1 | 966491R1 |
| ROD INTERMEDIATE PIPE HANGER | 1 | 3858255C1 |
| ROD, INTERMEDIATE PIPE HANGER | 1 | 4090772C1 |
| SUPPORT HEAT SHIELD | 4 | 3880047C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
