4065948C91
PIPE, INTERMEDIATE, TAIL
Navistar International®
DISCONTINUED
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PIPE, INTERMEDIATE, TAIL,

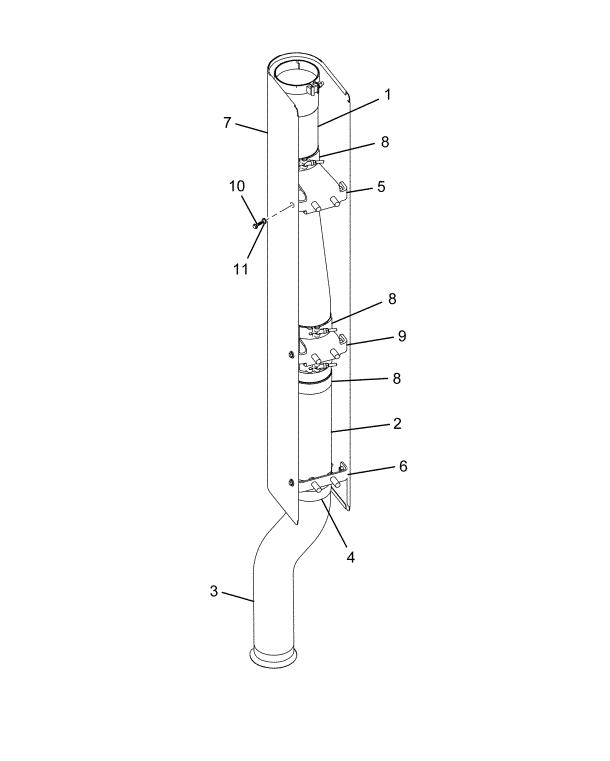

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PIPE,INTERMEDIATE,TAIL , | 1 | 4065271C1 |
| WASHER GRAB HANDLE MOUNTING STAINLESS STEEL M8 | 6 | 3542142C1 |
| BOLT, LOCK STAINLESS STEEL W/PATCH M8 X 1.25 X 20MM | 6 | 3553462C1 |
| FLEX TUBE 15.5 IN INSTALLED LENGTH X 5.0 IN I.D. | 1 | FLTCTL518SF |
| FLEX TUBE 15.5 IN INSTALLED LENGTH X 5.0 IN I.D. | 1 | 570096C1 |
| PIPE, INTERMEDIATE, TAIL, | 1 | 4065945C1 |
| CLAMP, EXHAUST PIPE LAP JOINT 5" | 2 | FLTEC50PLA |
| CLAMP, EXHAUST PIPE LAP JOINT 5" | 2 | 583979C91 |
| SUPPORT , PIPE, WELDED ASSY | 1 | 4065267C1 |
| SUPPORT, NULL | 1 | 4065276C1 |
| SHIELD,HEAT , BRIGHT | 1 | 3767502C1 |
| CLAMP, EXHAUST PIPE T- BOLT ,5.25-5.50 INCH | 4 | 3862438C1 |
| SUPPORT, PIPE, ASSEMBLY | 1 | 4065907C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
