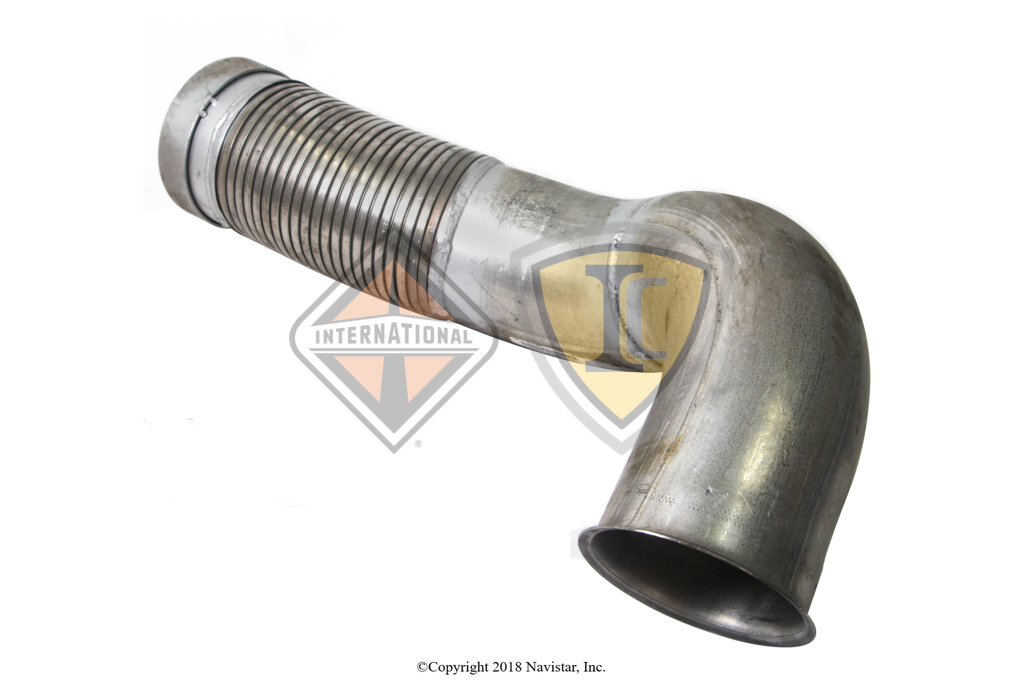

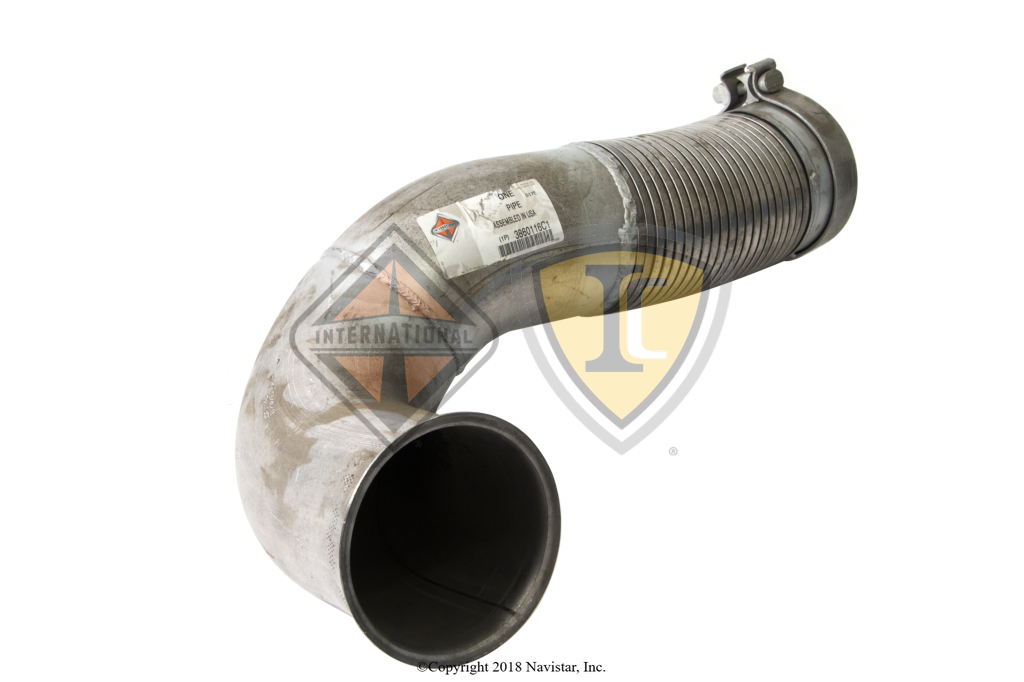

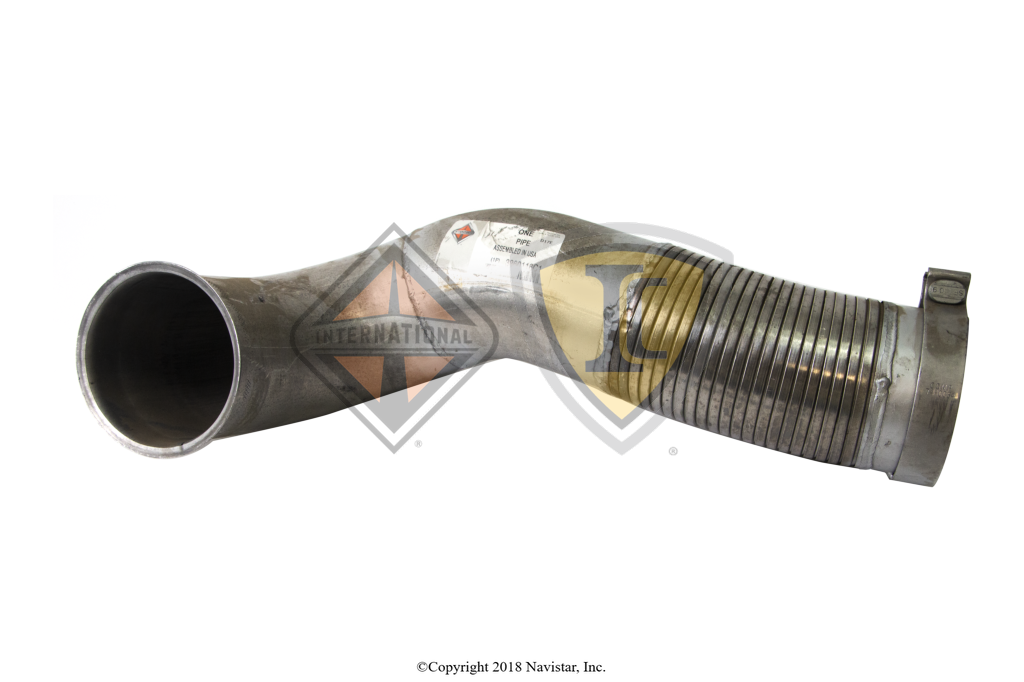

3860116C1
PIPE, INTERMEDIATE, TAIL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$869.95
$1,043.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
PIPE, INTERMEDIATE, TAIL
Package Dimensions
24.0 x 9.0 x 7.0 in
Weight
12.03 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CLAMP, MUFFLER PIPE OR TAIL PIPE | 1 | 3626689C1 |
| PIPE, INTERMEDIATE, TAIL, | 1 | 3860113C1 |
| PIPE, REDUCER EXHAUST ,5 IN O.D. | 1 | 3836917C1 |
| TUBE 7.7 IN INSTALLED LENGTH X 5.0 IN I.D. | 1 | FLTCTL512SF |
| TUBE 7.7 IN INSTALLED LENGTH X 5.0 IN I.D. | 1 | 757172C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
