3838743C1
PIPE, EXHAUST ASSEMBLY INTERMEDIATE. FOR LONG SLEEPER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$639.95
$767.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PIPE, EXHAUST ASSEMBLY INTERMEDIATE. FOR LONG SLEEPER
Weight
29.06 lbs

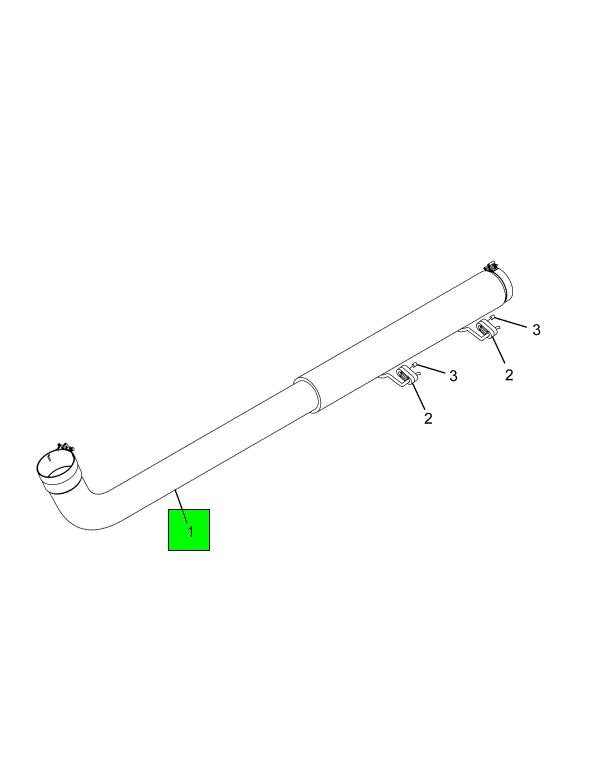

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PIPE, EXHAUST INTERMIDIATE FOR LONG SLEEPER | 1 | 3838742C1 |
| SUPPORT EXHAUST PIPE | 2 | 3684923C1 |
| CLAMP, MUFFLER PIPE OR TAIL PIPE | 2 | 3626689C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
