3823275C2

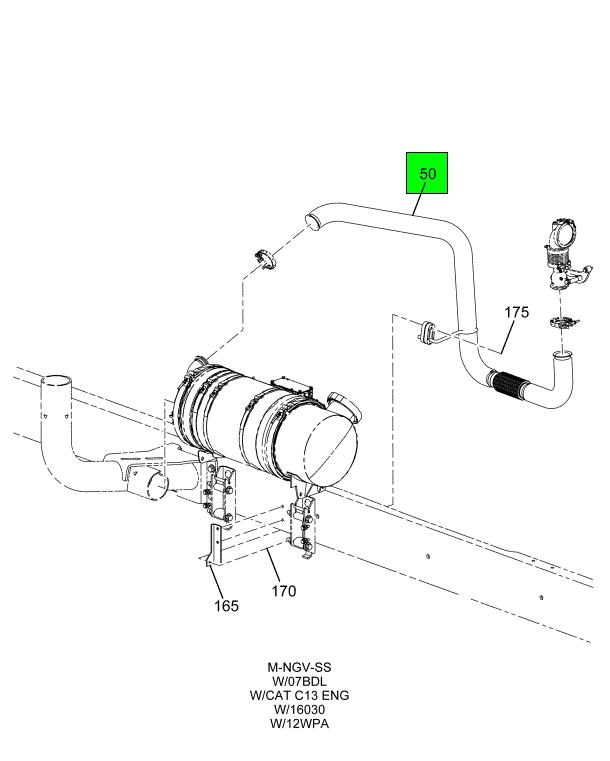

PIPE ASSEMBLY, EXHAUST
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,849.95
$2,219.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PIPE,EXHAUST, CGI ASSY W/FLEX
Weight
20.999 lbs

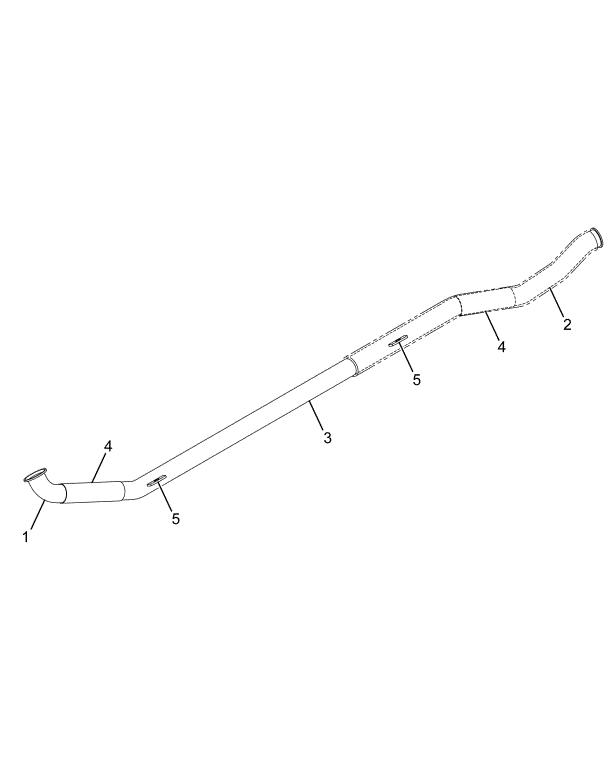

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PIPE, EXHAUST CGI | 1 | 3818517C1 |
| PIPE, EXHAUST | 1 | 3822927C1 |
| PIPE, EXHAUST | 1 | 3823278C1 |
| TUBE FLEX-* | 2 | 594054C1 |
| SUPPORT CGI PIPE | 2 | 3818471C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
