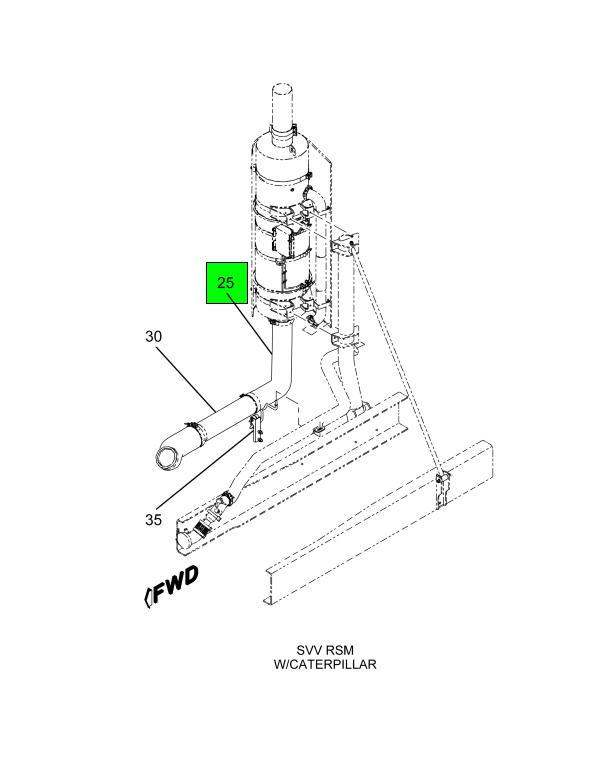

3818786C91
PIPE EXHAUST INT ASSY RT SID
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$429.95
$515.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PIPE, EXHAUST INTERMEDIATE

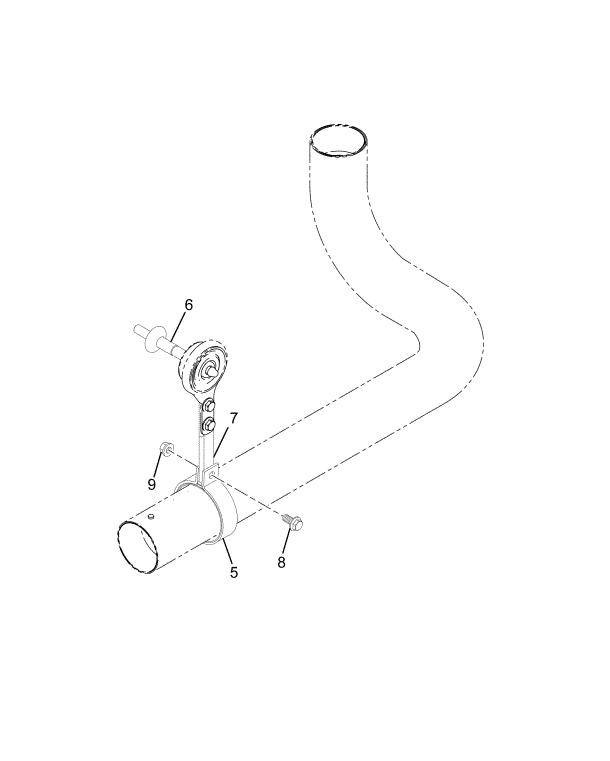

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CLAMP, NORMA 4" | 1 | 2594041C1 |
| BRACKET, HANGER MUFFLER | 1 | 2595022C1 |
| SUPPORT, PIN AND MOUNTING MUFFLER | 1 | 2595021C91 |
| BOLT, FLANGE HEAD | 3 | 3551579C1 |
| NUT NUT, M16 PREV TORQUE FINISH PER TMS-4518 | 3 | 3544786C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
