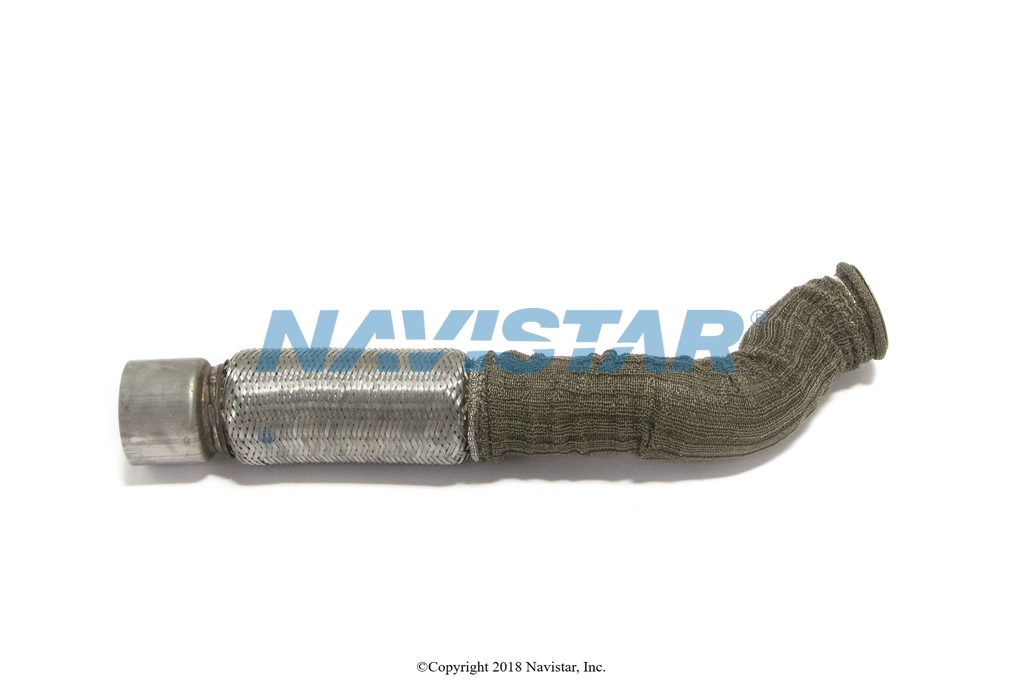

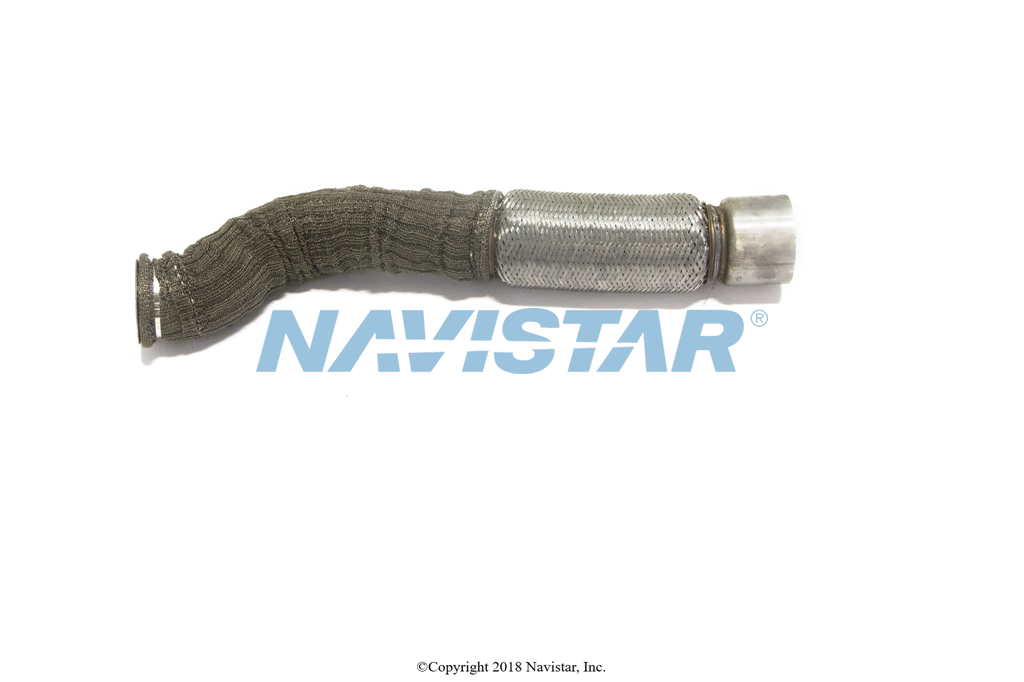

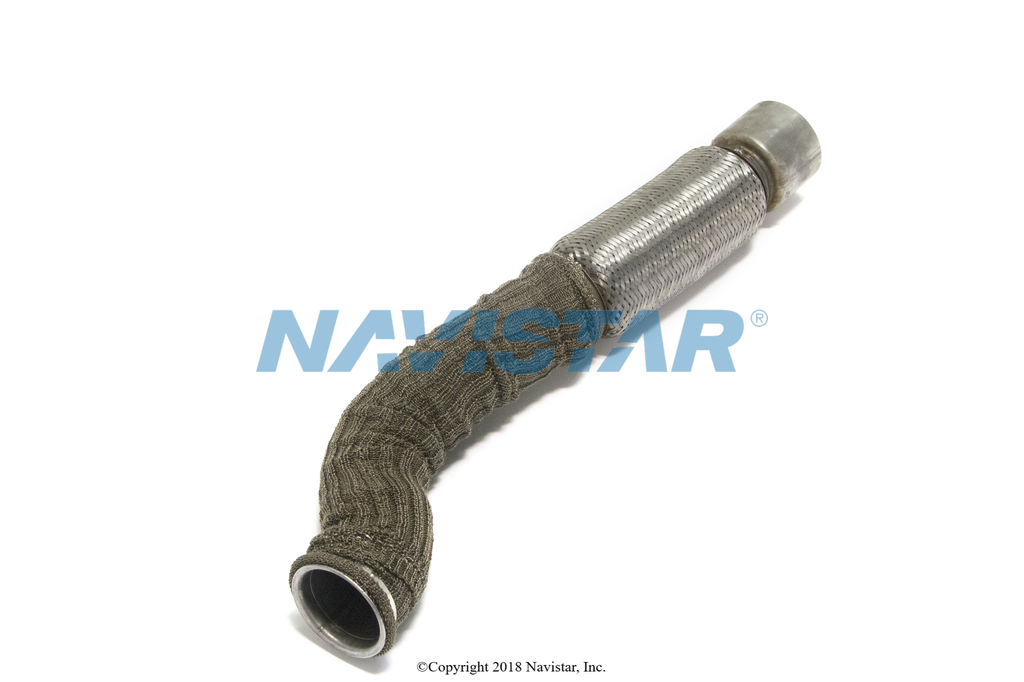

3810463C4
PIPE, TURBOCHARGER ASSEMBLY W/2.5 DEGREE CUMMINS ISX
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,699.95
$2,039.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
043-003-030
OEM Description
PIPE, TURBOCHARGER ASSEMBLY W/2.5 DEGREE CUMMINS ISX
Package Dimensions
9.5 x 6.0 x 35.0 in
Weight
18.04 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PIPE ,DECOUPLER BELLOWS 4" I.D. | 1 | 3844243C1 |
| PIPE, TURBOCHARGER W/2.5 DEGREE CUMMINS ISX | 1 | 3826638C2 |
| PIPE, TURBOCHARGER REDUCER, 5 | 1 | 3825269C2 |
| SHIELD, HEAT THERMAL SOCK | 1 | 3702859C1 |
CROSS REFERENCES
- UPS 4703144
- UPS 4703144
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
