3595709C91
PIPE, CHARGE AIR COOLER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$459.95
$551.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
Engine Platform
CAT CUMMINS DDC OEM Engine Parts
OEM Description
PIPE AIR CAC COLD SIDE ASSY
Weight
14.03 lbs

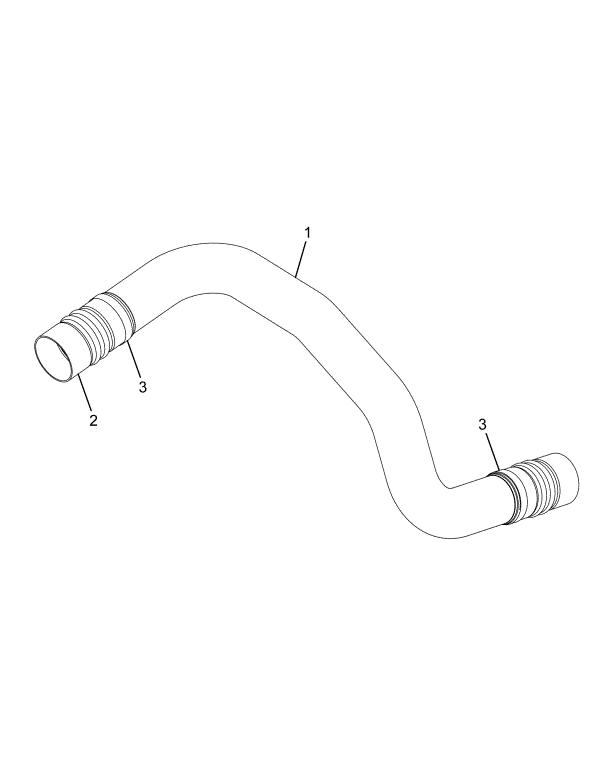

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PIPE, CHARGE AIR COOLER | 1 | 3595711C1 |
| HOSE, AIR COLD SIDE 4" I.D. X 7" | 1 | 3582899C1 |
| CLAMP, AIR DUCT HOSE | 2 | 1517672C91 |
| CLAMP, AIR DUCT HOSE | 2 | 1517672C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
