3577979C91

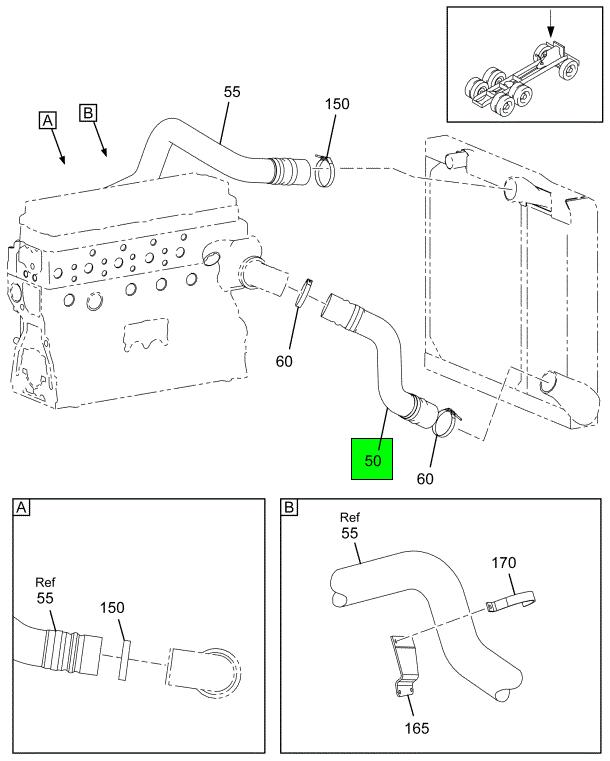

PIPE, CHARGE AIR COOLER HOT SIDE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$349.95
$419.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
Engine Platform
ISX SCR 15L Components
OEM Description
PIPE, CHARGE AIR COOLER HOT SIDE
Package Dimensions
28.5 x 11.5 x 8.75 in
Weight
6.56 lbs

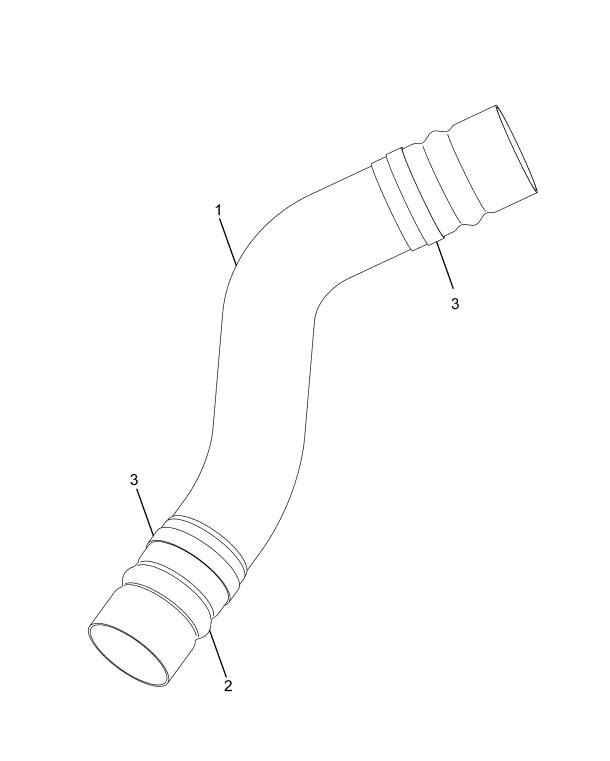

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PIPE, CHARGE AIR COOLER HOT SIDE | 1 | 3577978C1 |
| HOSE, FLEXIBLE AIR CHARGE AIR COOLER HOT SIDE 4" DIAMETER | 2 | 3558834C1 |
| CLAMP, AIR DUCT HOSE | 2 | 1517672C91 |
| CLAMP, AIR DUCT HOSE | 2 | 1517672C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
