3577447C91

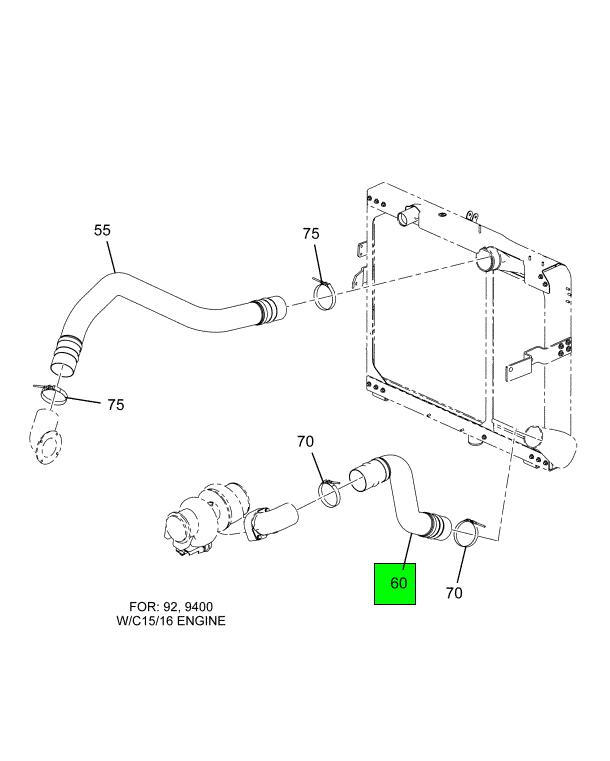

PIPE, CHARGE AIR COOLER HOT SIDE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$259.95
$311.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
041-004-023
OEM Description
PIPE, CHARGE AIR COOLER HOT SIDE
Package Dimensions
21.0 x 10.0 x 6.0 in
Weight
4.01 lbs

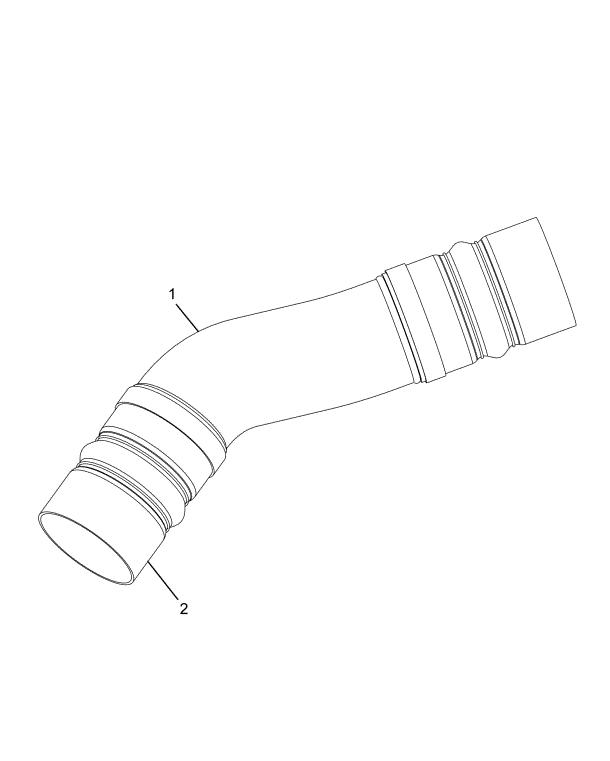

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PIPE, AIR CHARGE AIR COOLER(CAC) HOT SIDE | 1 | 3577439C1 |
| HOSE, FLEXIBLE AIR CHARGE AIR COOLER HOT SIDE 4" DIAMETER | 2 | 3558834C1 |
CROSS REFERENCES
- FLX FAB INT2234
- FLX FAB INT2234
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
