3566846C1
PIPE, LOWER RADIATOR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$42.95
$51.54
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
043-000-000
OEM Description
PIPE RADIATOR LOWER ASSY

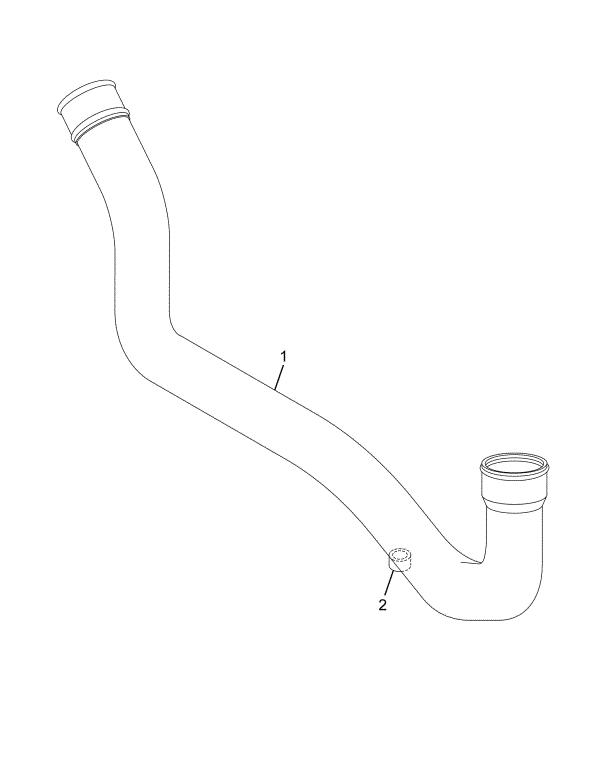

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PIPE, RADIATOR INLET OR OUTLET LOWER, C15,C16 | 1 | 3566845C1 |
| FERRULE, AIR TANK 1/4" NPT | 1 | 182644R1 |
CROSS REFERENCES
- NELSN Q662563-10
- NELSN Q662563-10
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
