3566834C1
PIPE, LOWER RADIATOR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$72.95
$87.54
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS

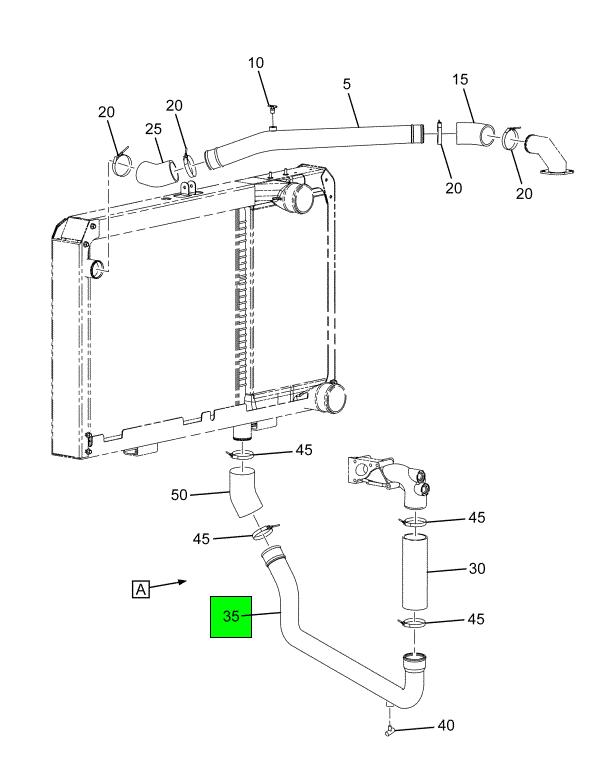

Engine Platform
ISX SCR 15L Components
OEM Description
PIPE RADIATOR LOWER ASSY ISX

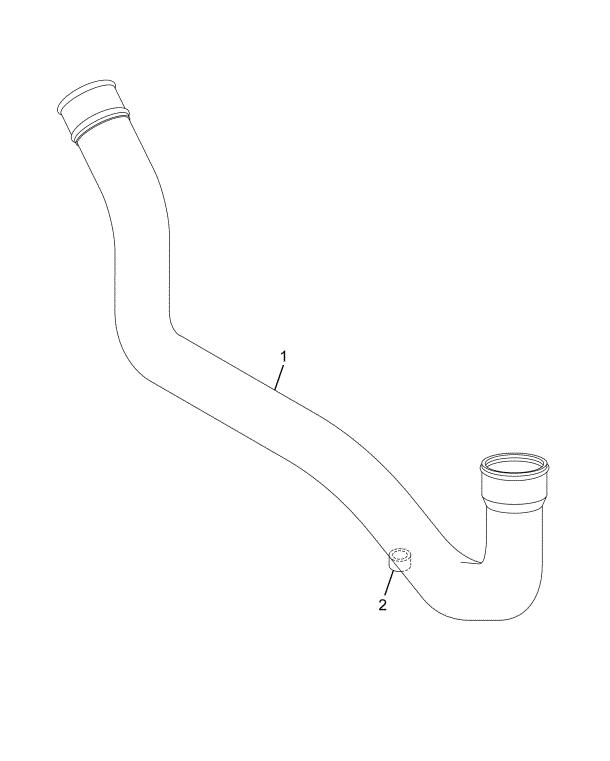

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PIPE, RADIATOR INLET OR OUTLET LOWER, ISX | 1 | 3566833C1 |
| FERRULE, AIR TANK 1/4" NPT | 1 | 182644R1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
