3558917C91
PIPE, CHARGE AIR COOLER HOT SIDE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$329.95
$395.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
045-000-000
Engine Platform
ISX SCR 15L Components
OEM Description
PIPE, CHARGE AIR COOLER HOT SIDE
Weight
6.01 lbs

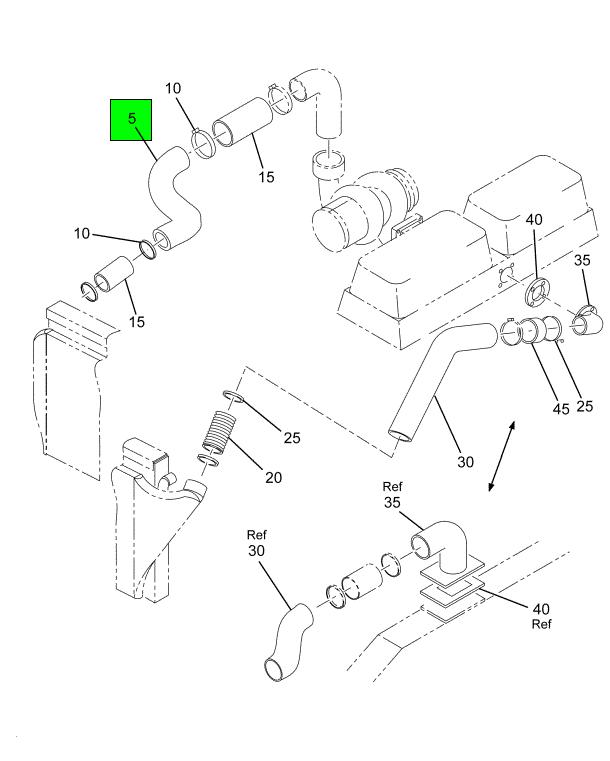

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PIPE, TURBOCHARGER TO CHARGE AIR COOLER | 1 | 3527351C1 |
| PIPE, CHARGE AIR COOLER HOT SIDE | 1 | 3573040C1 |
| HOSE, TURBOCHARGER HOT SIDE 4" I.D. X 7" | 2 | 1673866C1 |
CROSS REFERENCES
- FLX FAB INT2146
- FLX FAB INT2146
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
